Build 260 – F9 AdaRaptor: CAD Workstation

F9 AdaRaptor is a CAD workstation, designed around a 24-core i9-13900K processor and an RTX 4000 ADA 20GB video card.

Description

F9 AdaRaptor is a CAD workstation, designed around a 24-core i9-13900K processor and an RTX 4000 ADA 20GB video card.

General System Design

This build is designed around a 24-core i9-13900K processor and an RTX 4000 ADA 20GB video card.

Software Workload/Customer Need

This customer needed a powerful new workstation to handle their growing professional workload that would last a long time.

This build is designed for SolidWorks, AutoCAD, 3DS Max, Revit, Illustrator, Photoshop, and InDesign.

This build was influenced by our i9 Rhino Workstation.

System Spec

Processor (CPU): Intel i9-13900K

CPU Cooler: Phanteks GLACIER ONE 360D30

Motherboard: Gigabyte Z790 AORUS ELITE AX

Memory: Kingston Fury Renegade 2x32GB DDR5-6000

Storage (NVME): Kingston Fury Renegade 1TB

Video Card (GPU): Nvidia RTX​ 4000 ADA ​20GB

Power Supply (PSU): be quiet! Straight Power 12 1000W

Case: be quiet! Pure Base 500DX

Fans: 6x Phanteks PH-F120T30

OS: Windows 11 Pro

Facebook Build Gallery | YouTube Video Archive

Design Rationale

  • The i9-13900K gave the customer a great amount of single-core performance for modeling and editing, and multicore performance for heavily-threaded tasks.
  • To ensure the CPU runs at full speed, liquid cooling with a 360mm AIO is recommended.
  • The customer wanted a stable motherboard with a good amount of desktop functionality.
  • The customer wanted at least 64GB of RAM, and didn’t want last-gen tech. 128GB is an easy upgrade.
  • The customer requested a 1TB Gen4 NVME for overall storage.
  • For best stability in SolidWorks and AutoDesk, and decent rendering power, we recommended the RTX 4000 ADA 20GB.
  • The overall design of the build meant that a 1000W power supply was recommended.
  • We used our default mid-tower case to fit the motherboard
  • We used our highest-performing fans to ensure proper airflow and static pressure.

Customer Review

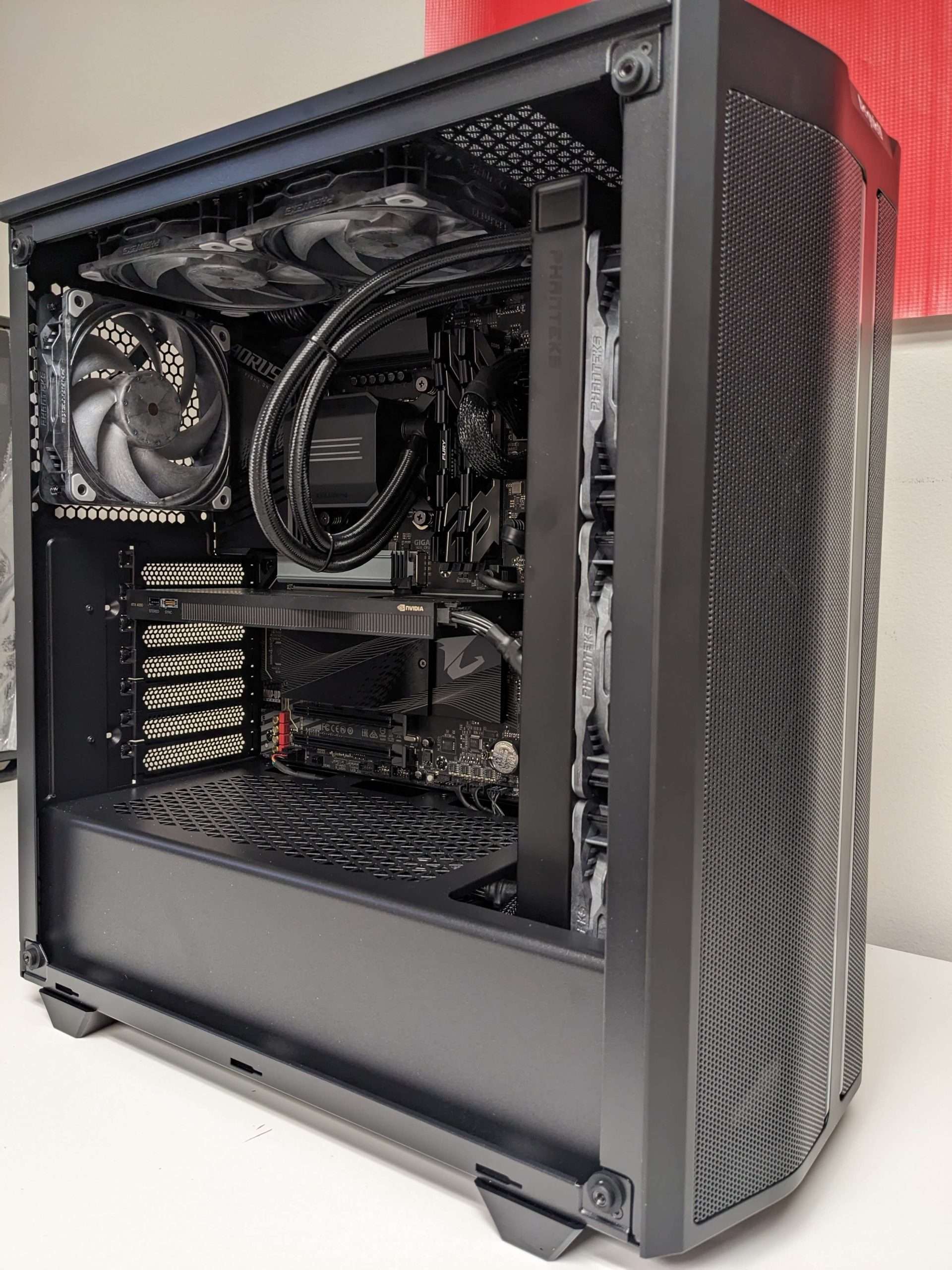

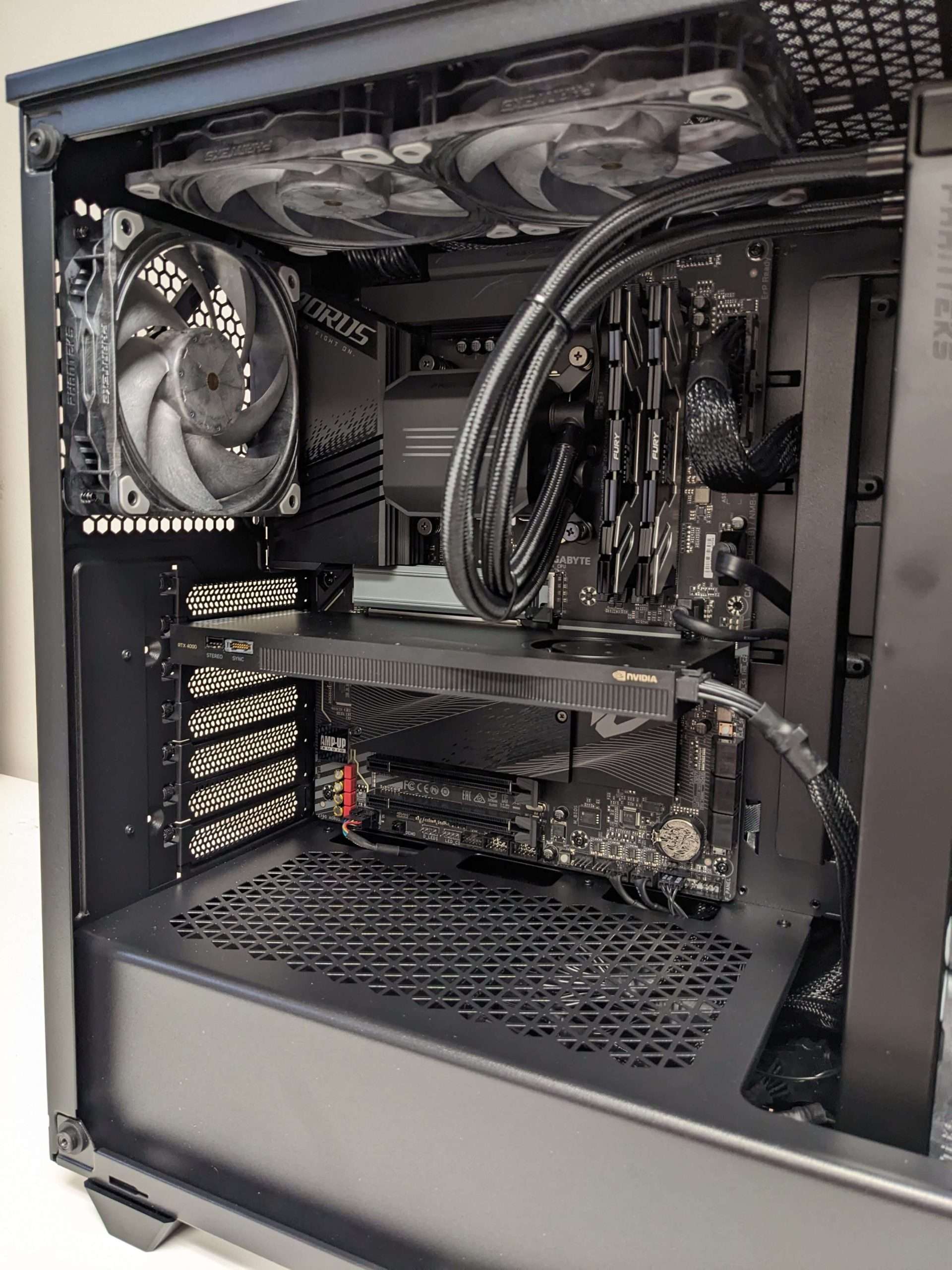

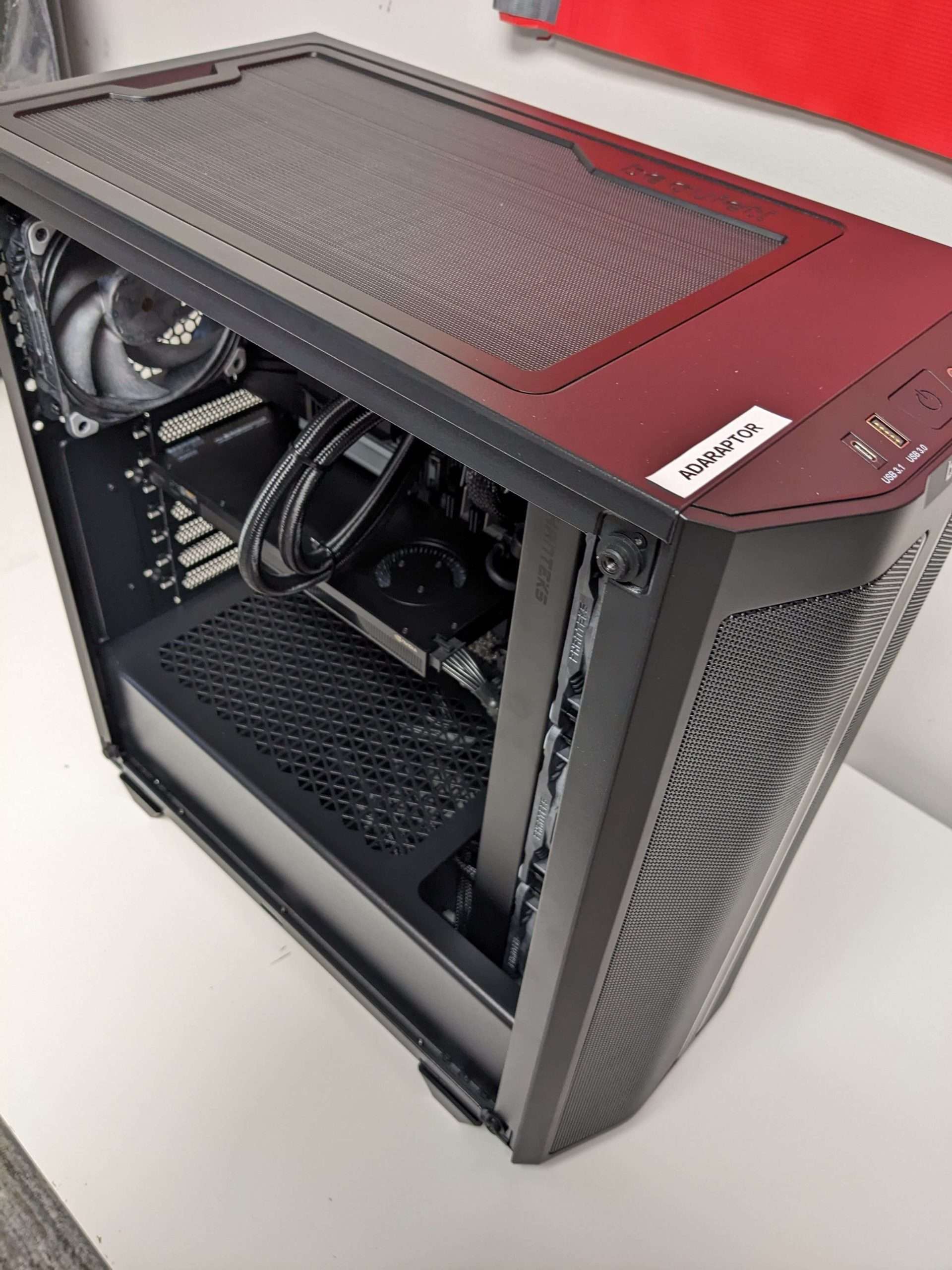

Build Gallery
