Machine Learning Workstation

Description

Leibniz is a machine learning workstation, designed around twin 96-core EPYC 9654 processors and an RTX A6000 48GB video card.

General System Design

This build is designed around twin 96-core EPYC 9654 processors and an RTX A6000 48GB video card.

Software Workload/Customer Need

This customer needed a powerful new workstation to handle their growing professional workload that would last a long time.

This build is designed for machine learning, LLM development, and highly multithreaded CPU rendering.

This build was influenced by our Dual EPYC 9004 Extreme Workstation.

System Spec

Processor (CPU): 2x AMD EPY​C 9654

CPU Cooler: 2x Silver​Ston​e Tec​hnolo​gy X​E360-S​P5

Motherboard: Gigabyte M​Z73-LM0 (r​ev. 2.0)

Memory: Kingston 2​4x64GB DDR​5-5600 ECC

Main Storage (NVME): Kingston Fury Renegade 4TB

Backup Storage (HDD): 4x Toshiba MG09ACA18TE 18TB RAID5

Video Card (GPU): Nvidia RTX A6000 48GB

Power Supply (PSU): be quiet! Dark Power Pro 13 1600W Titanium

Case: Fractal Design Meshify 2 XL

11x Phanteks PH-F120T30, 4x Noctua NF-A4x20, 1x Silverstone FHS80X

OS: Windows 11 Pro for Workstations

Facebook Build Gallery | YouTube Video Archive

Design Rationale

  • The dual EPYC 9654s gave the customer a great amount of single-core performance for general use, and multicore performance for heavily-threaded tasks. We reviewed the 9754, but determined that the base/boost frequencies were lower than desired, and there was much lower cache/core than preferred for AI development.
  • To ensure the CPU runs at full speed, liquid cooling with dual 360mm coolers is recommended.
  • The customer wanted a stable motherboard.
  • The customer wanted at least 1.5TB of RAM, adding more RAM was relatively easy to do.
  • The customer requested a specific storage setup.
  • The RTX A6000 48GB gave the customer enough VRAM for their models, and could be swapped for an RTX 6000 ADA in the future.
  • The overall design of the build meant that an 1600W power supply was recommended.

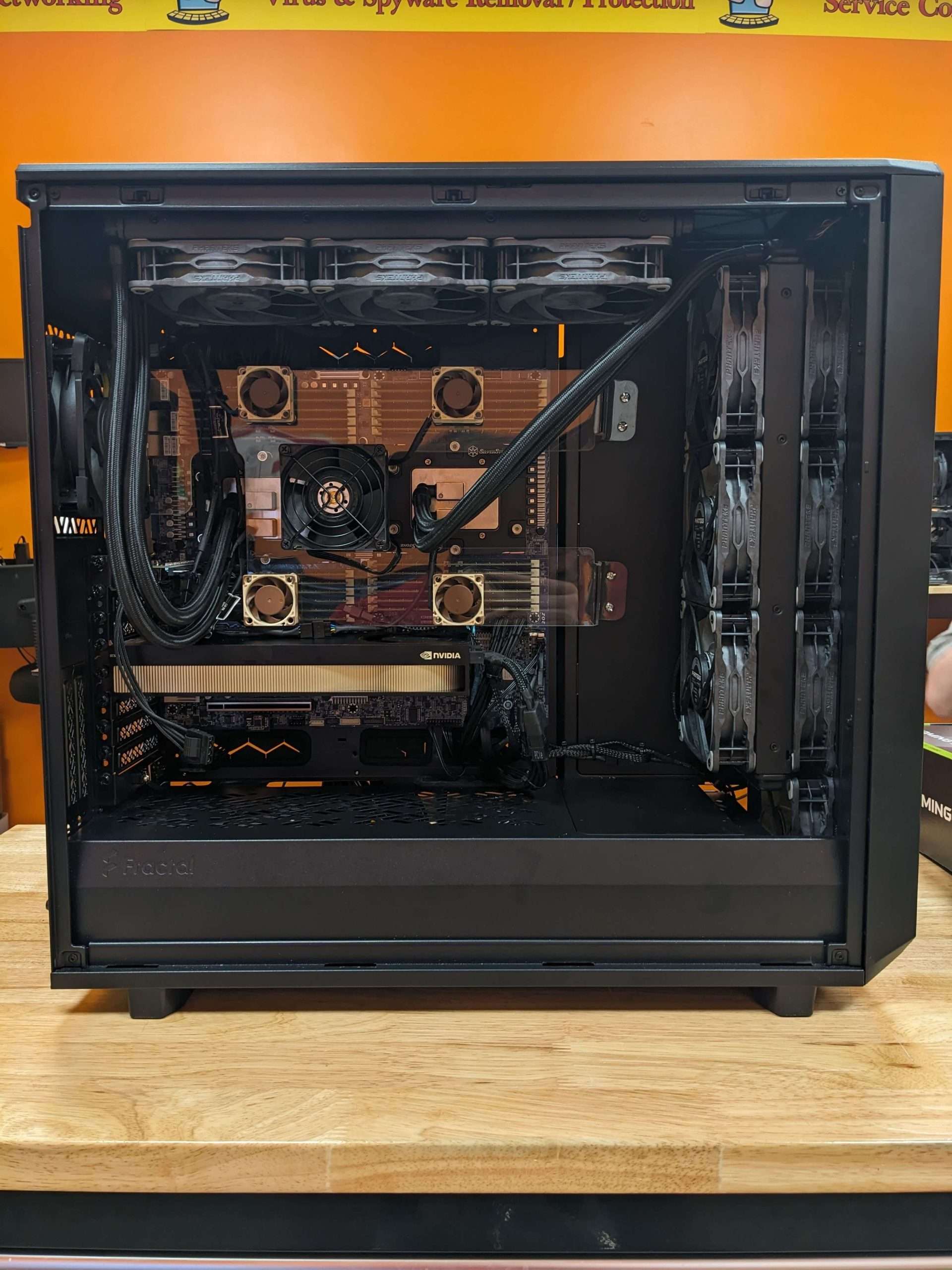

  • We used a large full-tower case to fit the build.

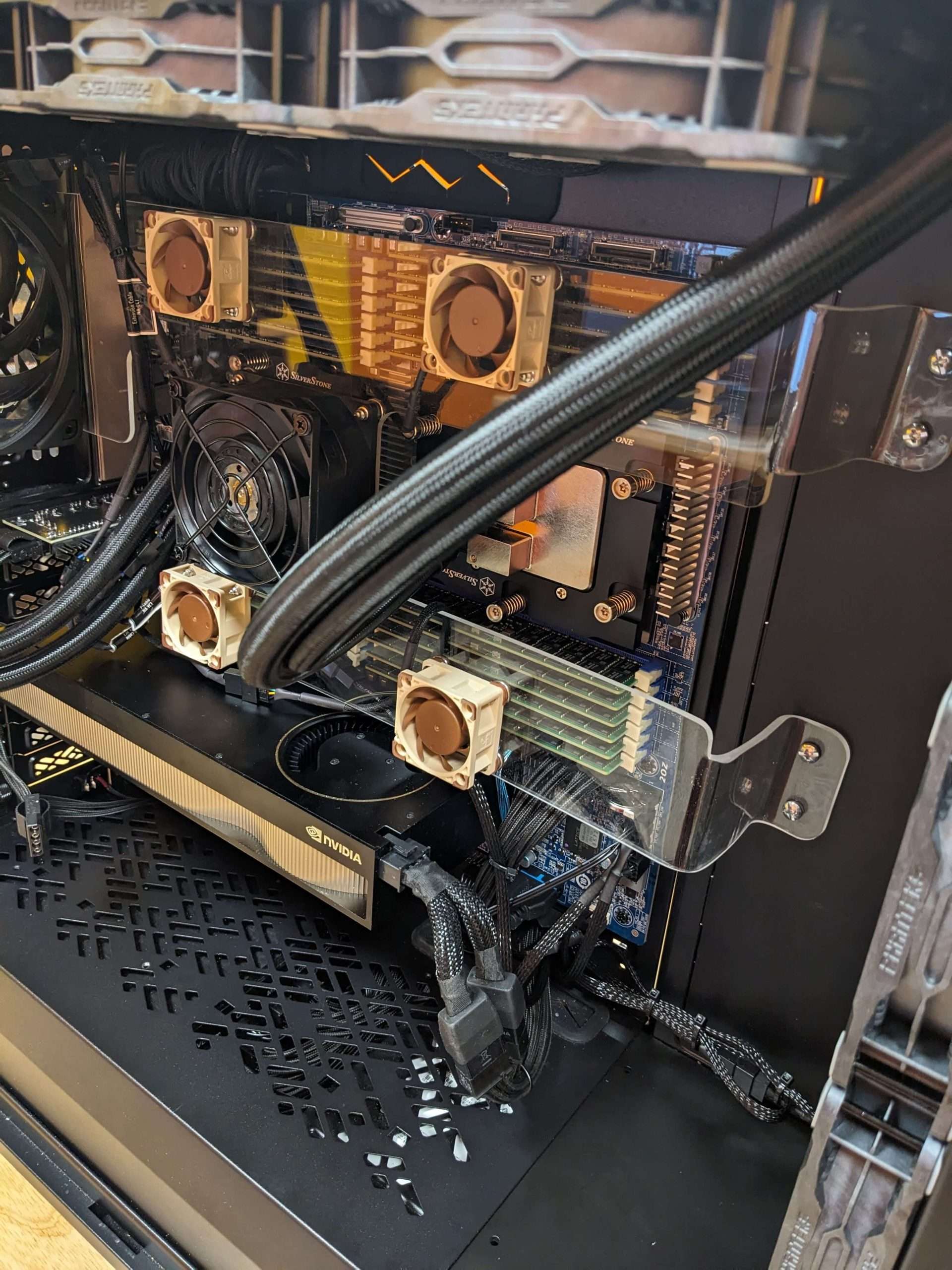

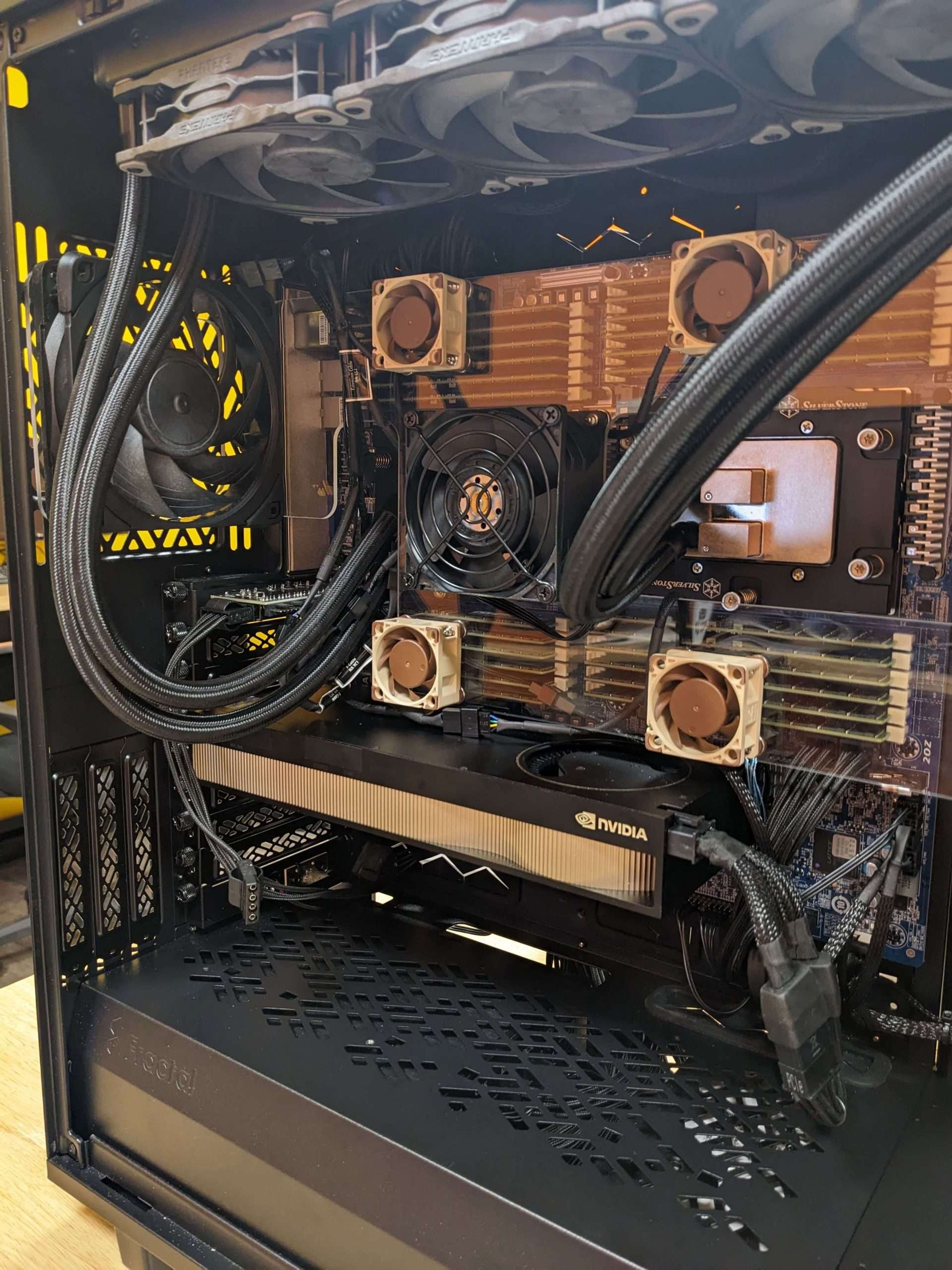

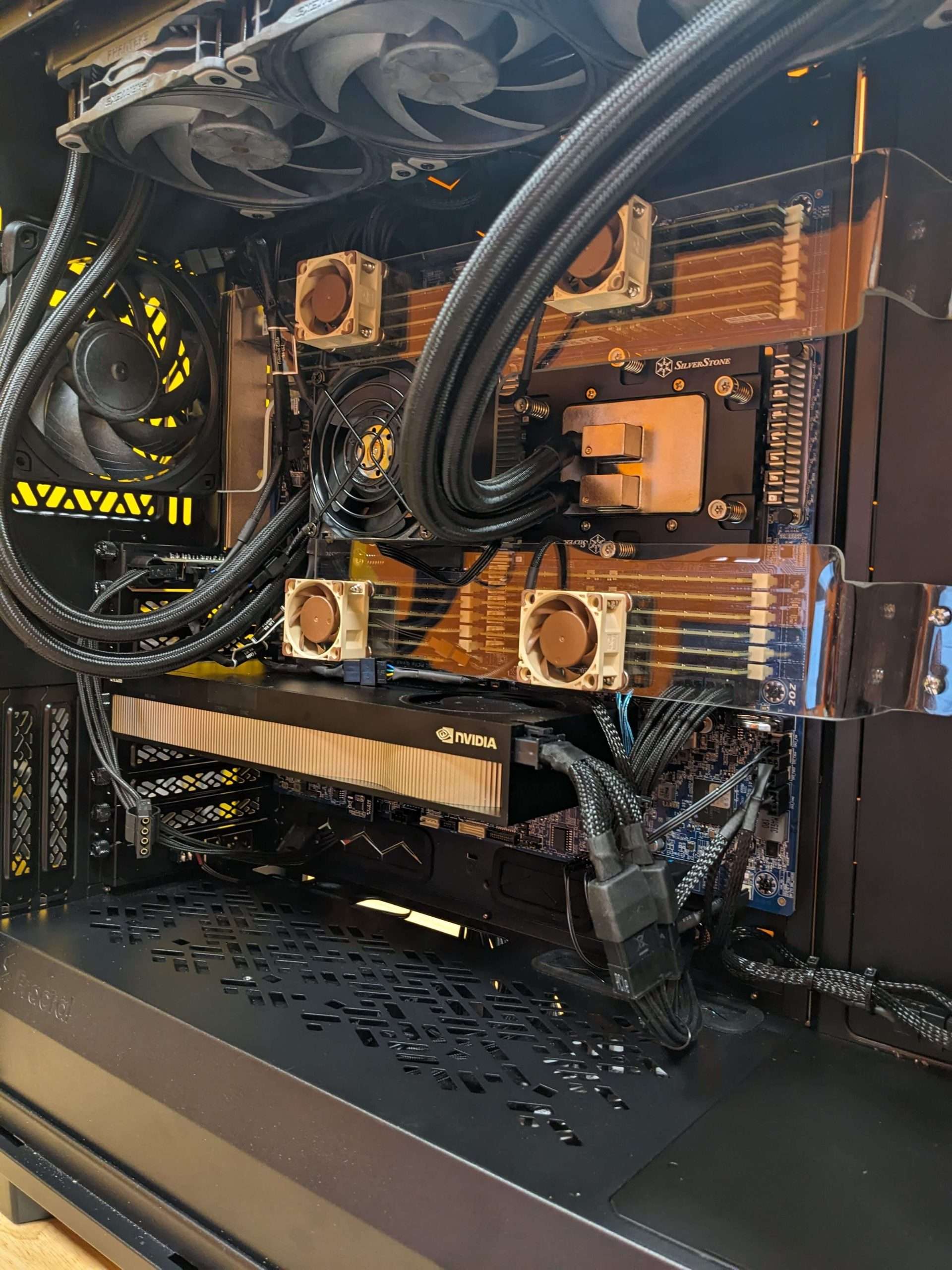

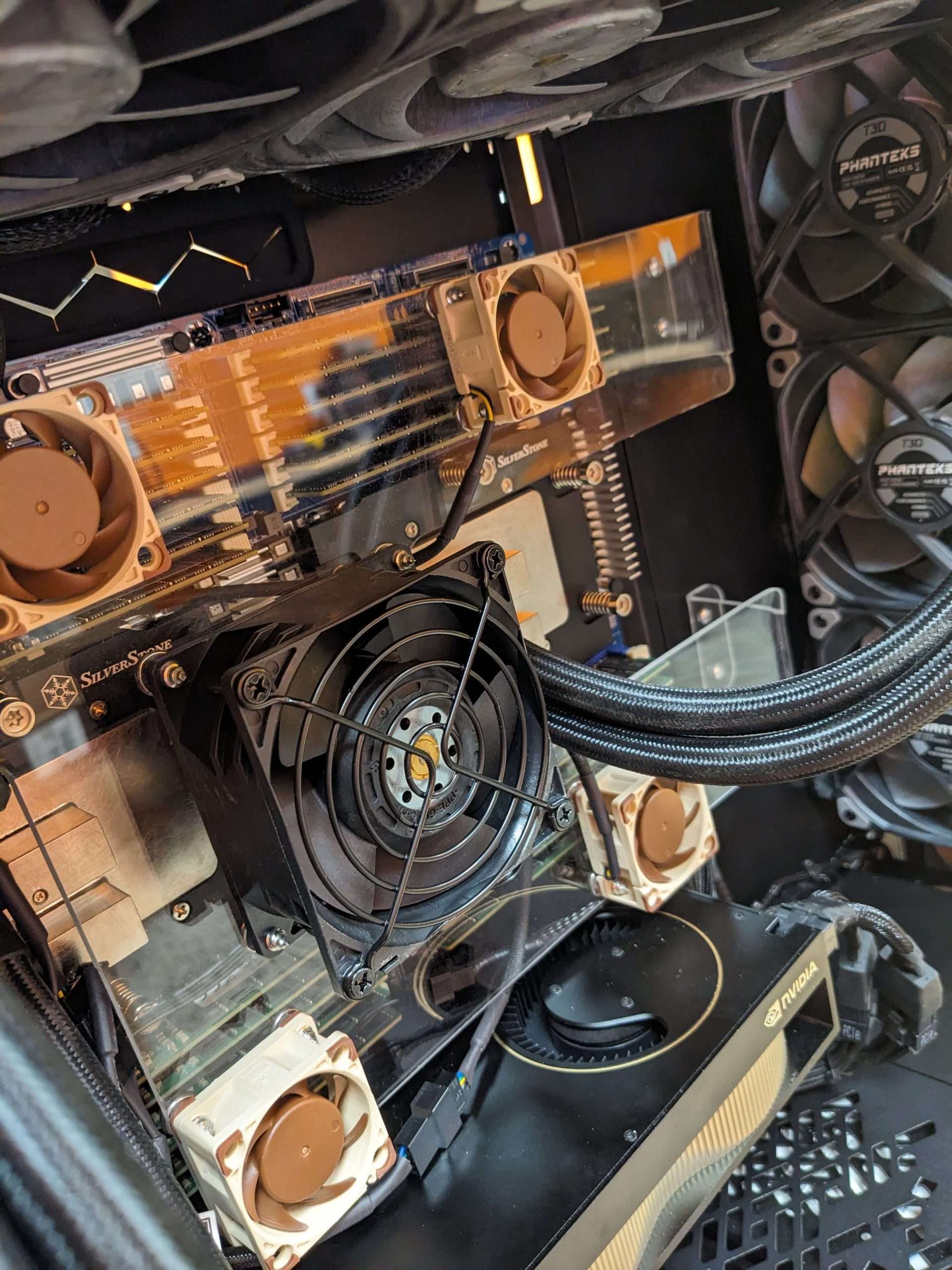

  • We added extra fans and custom acrylic bracing to cool the RAM and VRM more effectively.
  • We used our highest-end fans to ensure proper airflow and static pressure.

Customer Review

Build Gallery
