Build 349 – Pierco: AI Training Workstation

Pierco is an AI training workstation, designed around a 24-core Threadripper Pro 5965WX processor and 4 RTX 3090 24GB video cards.

Interested In Buying This PC Build?

Buy Now

Navigate here

2025 Build Archive

Support

  • Please note that we are unable to provide extended user-specific software support, you will need to be able to troubleshoot.
  • If you require IT support for your PC and we are unable to help, please contact NerdsToGo Cary at (919)-999-2181 or salescarync@nerdstogo.com
  • We do not work on PCs we didn't build. For computer repair & assembly, please contact Black Sun PC at (980) 866-5497 or jeremy@blacksunpc.com
AI Training Workstation

Description

Pierco is an AI training workstation, designed around a 24-core Threadripper Pro 5965WX processor and 4 RTX 3090 24GB video cards.

General System Design

This build is designed around a 24-core Threadripper Pro 5965WX processor and 4 RTX 3090 24GB video cards.

Software Workload/Customer Need

This customer needed a AI training workstation to handle their growing professional workload that would last a long time.

This build was designed for AI training. The customer sourced used GPUs on their own, due to budget constraints.

As their business expands, they will likely upgrade to a more modern system such as our Threadripper Pro 9000 AI Training Rack Workstation.

System Spec

Processor (CPU): AMD Threadrip​​​p​er Pro ​​5965WX

Motherboard: Asus Pro WS WRX80E-SAGE SE WIFI

Memory: GSkill Ripjaws V 8x32GB DDR4-3200

OS Storage (NVME): Western Digital Black SN850X 2TB

Main Storage (NVME): Western Digital Black SN850X 4TB

Video Card (GPU): 4x EVGA Geforce RTX 3090 24GB XC3 Ultra

Power Supply (PSU): 2x Corsair HX1500i (2022) 1500W

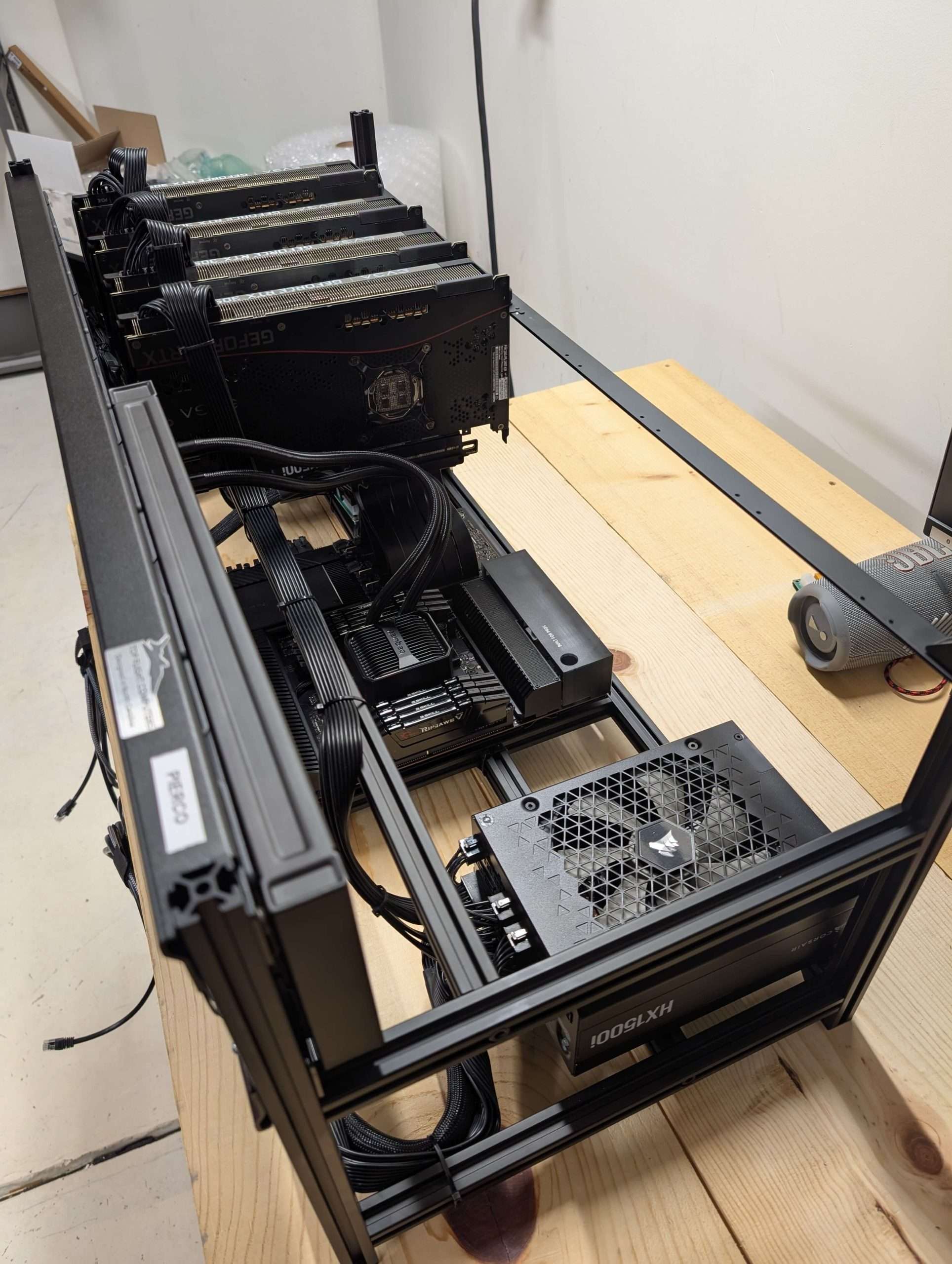

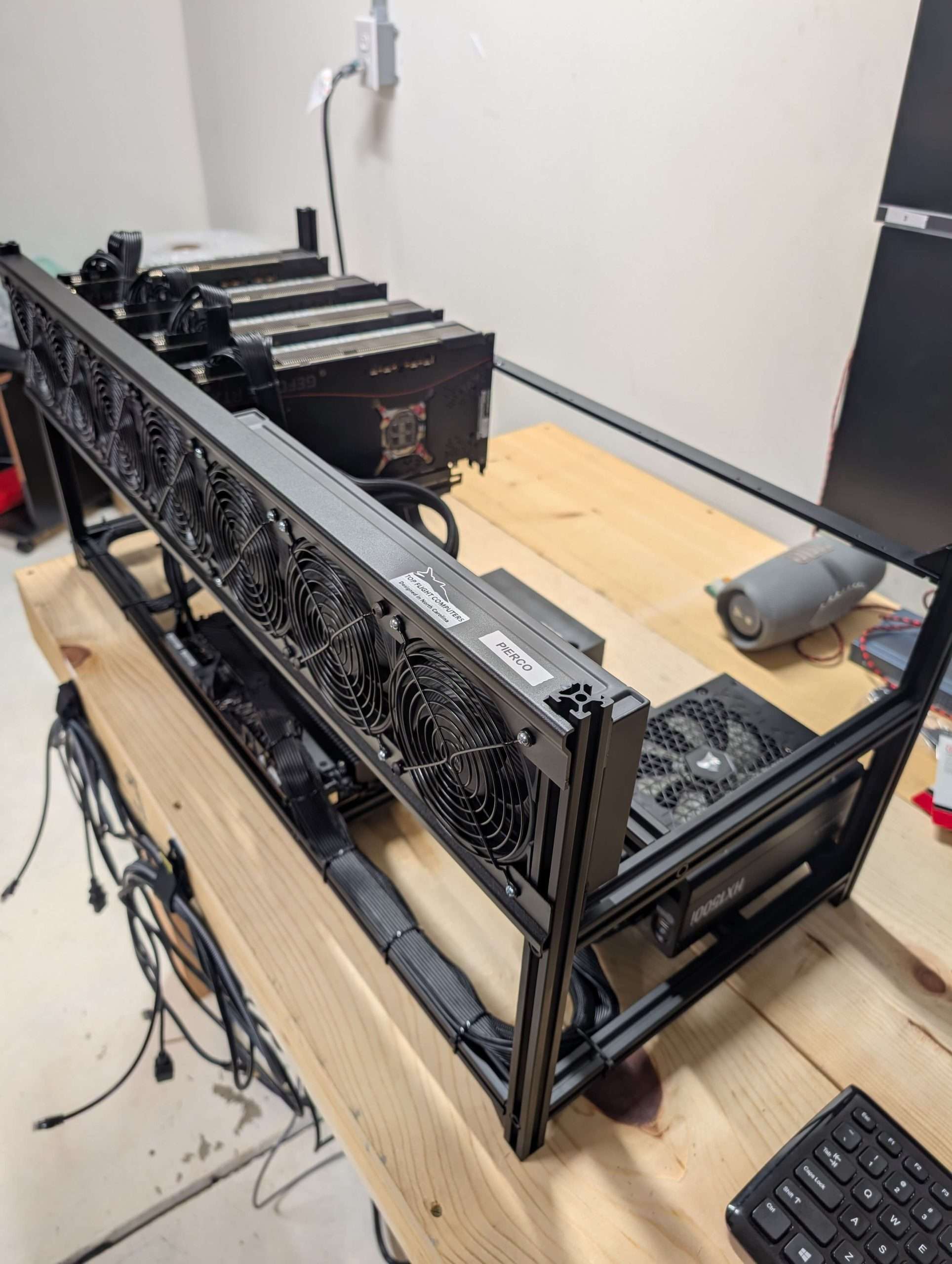

Case: Open-Air GPU Mining Case (fits in server cabinet)

Fans: 7x be quiet! Silent Wings Pro 4 120

OS: Ubuntu LTS

Facebook Build Gallery | YouTube Video Archive

Design Rationale

  • The Threadrip​​​p​er Pro ​​5965WX gave the customer a high amount of single-core performance for editing, and decent multicore performance for heavily-threaded tasks.
  • The customer wanted a stable motherboard with a good amount of desktop functionality.
  • The customer wanted to have at least 256GB of RAM, more RAM was an easy upgrade.
  • The customer was fine with our recommended storage setup.
  • The customer wanted a certain amount of AI training capability, on a restricted budget. They chose the RTX 3090 and sourced these on their own.
  • The overall design of the build meant that dual 1500W power supplies were recommended.

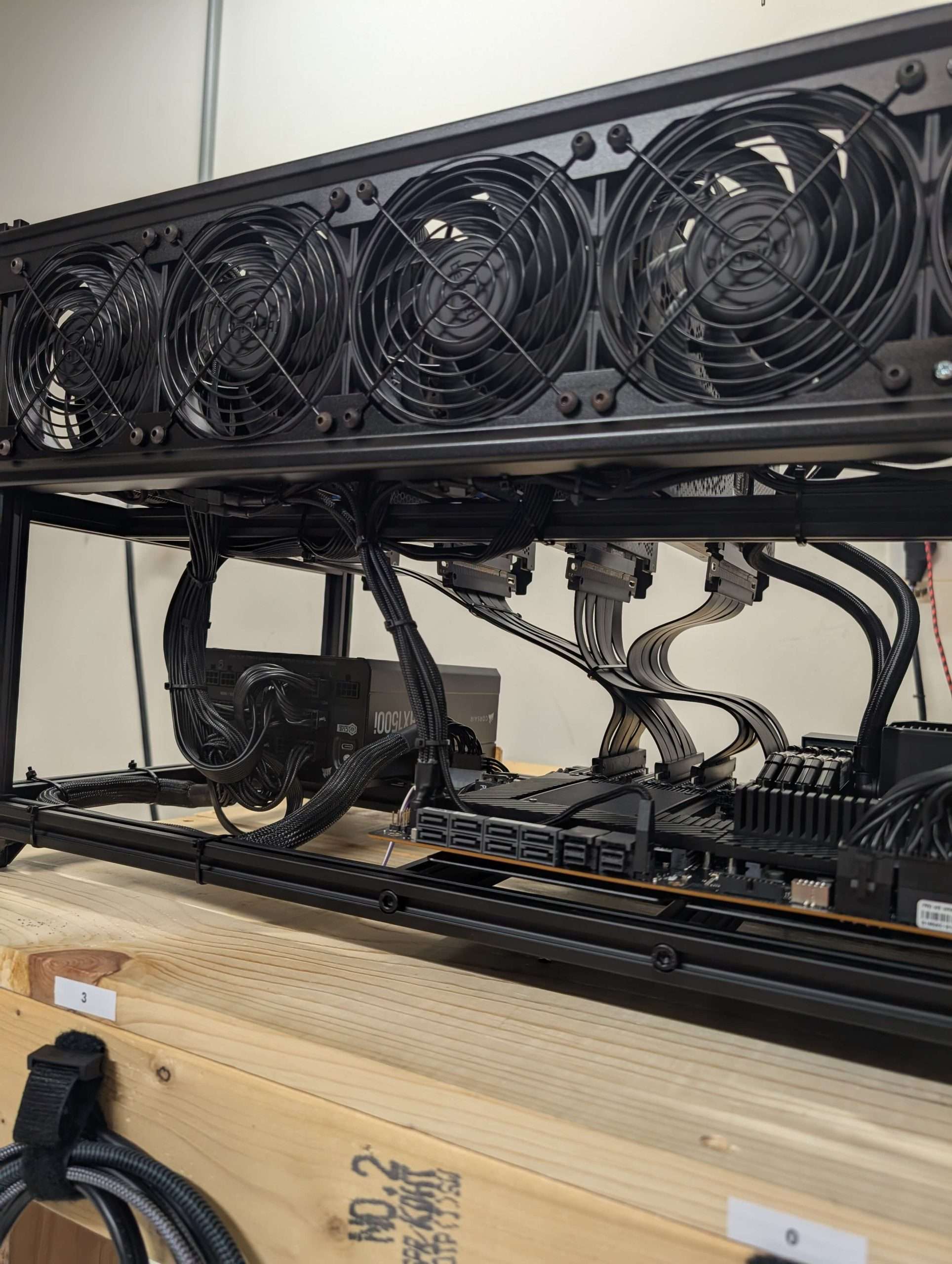

  • We used our high-end fans to ensure proper airflow and static pressure.
  • We initially specced a rackmounted custom loop, and had to change to an open-air system due to physical constraints when attempting to integrate the custom loop.

Customer Review

“Awesome group, really knowledgeable. I needed to build a custom GPU server for a scientific experiment and the guys came through big time.

They came very well recommended from another computer builder.

Thanks Chris for the awesome job.”

Tony, Morrisville NC

Build Gallery
