Build 314 – QT-WRXTRANS: Data Science Rack Workstation

QT-WRXTRANS is a set of 4 data science workstations, designed around a 96-core Threadripper Pro 7995WX processor and an RTX 2000 ADA 16GB video card.

Interested In Buying This PC Build?

Buy Now

Navigate here

2025 Build Archive

Support

  • Please note that we are unable to provide extended user-specific software support, you will need to be able to troubleshoot.
  • If you require IT support for your PC and we are unable to help, please contact NerdsToGo Cary at (919)-999-2181 or salescarync@nerdstogo.com
  • We do not work on PCs we didn't build. For computer repair & assembly, please contact Black Sun PC at (980) 866-5497 or jeremy@blacksunpc.com
Data Science Workstation

Description

QT-WRXTRANS is a set of 4 data science workstations, designed around a 96-core Threadripper Pro 7995WX processor and an RTX 2000 ADA 16GB video card.

General System Design

This build is designed around a 96-core Threadripper Pro 7995WX processor and an RTX 2000 ADA 16GB video card.

Software Workload/Customer Need

This customer needed a set of 4 rackmount data science workstations to handle their growing professional workload that would last a long time.

This build was designed for CPU-based data analysis, modeling, and calculation in PowerGEM TARA.

This build is based on our Threadripper Pro 7000 CPU Rendering Rack Workstation.

System Spec

Processor (CPU): AMD Threadrip​​​p​er Pro ​​7​995WX

CPU Cooler: SilverStone Technology XE360-TR5

Motherboard: Asus Pro ​W​S WRX90E​-S​AGE SE

Memory: Kingston 8x64GB DDR5-5600 ECC

OS Storage (NVME): Kingston Fury Renegade 1TB

Main Storage (NVME): Kingston Fury Renegade 4TB

Video Card (GPU): Nvidia RTX 2000 ADA 16GB

Power Supply (PSU): Super Flower Leadex III 1300W

Case: Silverstone RM44 4U

Fans: 6x be quiet! Silent Wings Pro 4 120, 2x Noctua NF-A4x20

OS: Windows 11 Pro

Facebook Build Gallery | YouTube Video Archive

Design Rationale

  • The Threadrip​​​p​er Pro ​​7​995WX gave the customer a high amount of single-core performance for editing, and maximum multicore performance for heavily-threaded tasks.
  • To ensure the CPU runs at full speed, liquid cooling with a 360mm liquid cooler is recommended.
  • The customer wanted a stable motherboard with a good amount of desktop functionality.
  • The customer wanted to have at least 512GB of RAM, more RAM was an easy upgrade.
  • The customer was fine with our default storage setup.
  • The customer agreed with our decision to use a server-grade video card for directed heat removal and long-term stability.
  • The overall design of the build meant that a 1300W power supply was recommended.
  • We used one of our rackmount cases to fit the build.
  • We used our high-end fans to ensure proper airflow and static pressure, as well as extra fans on the RAM.

Customer Review

“Would highly recommend Chris Touchberry.

Our company ordered 4 Threadripper Pros and he delivered.”

Owen, Raleigh NC

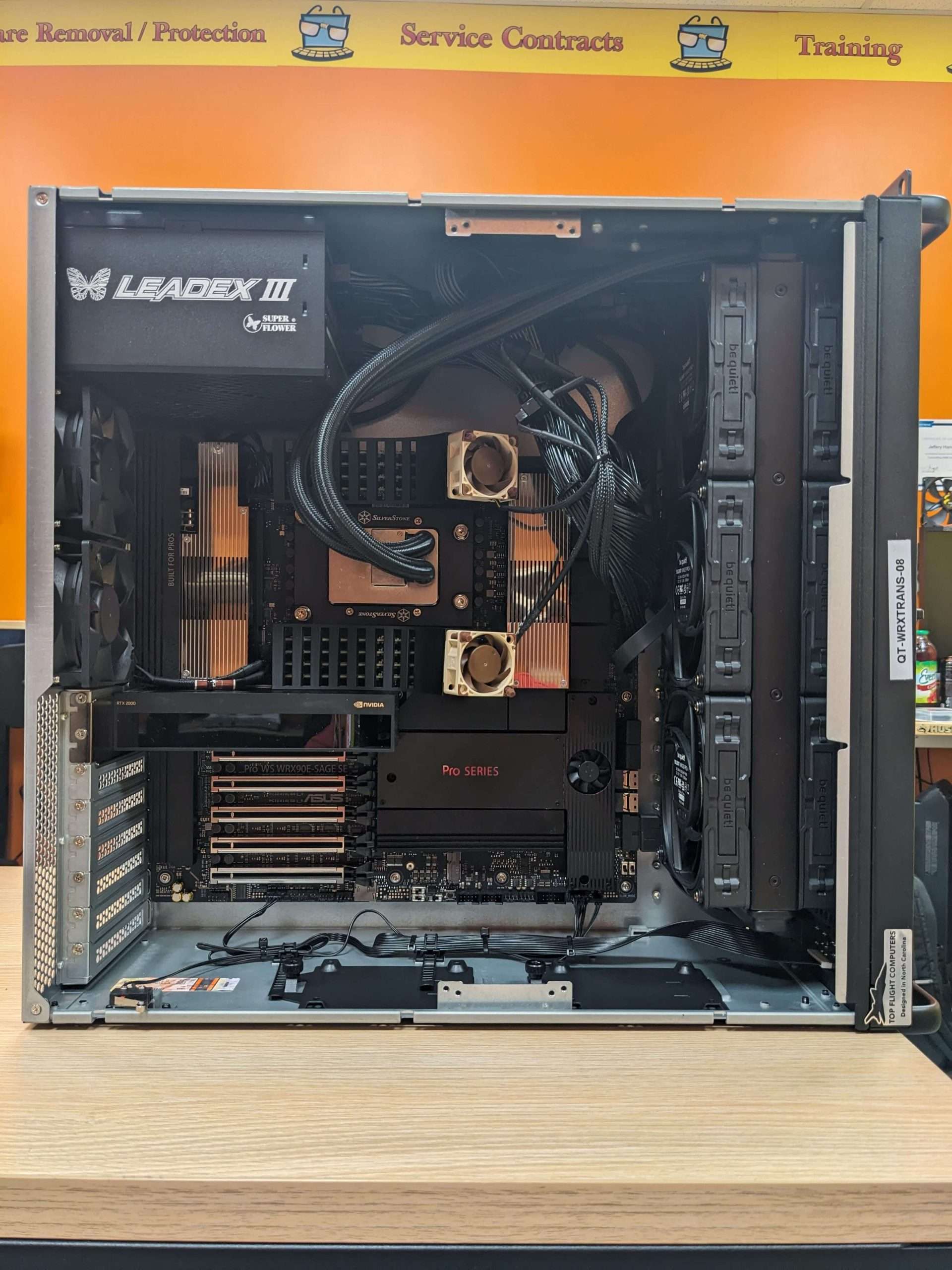

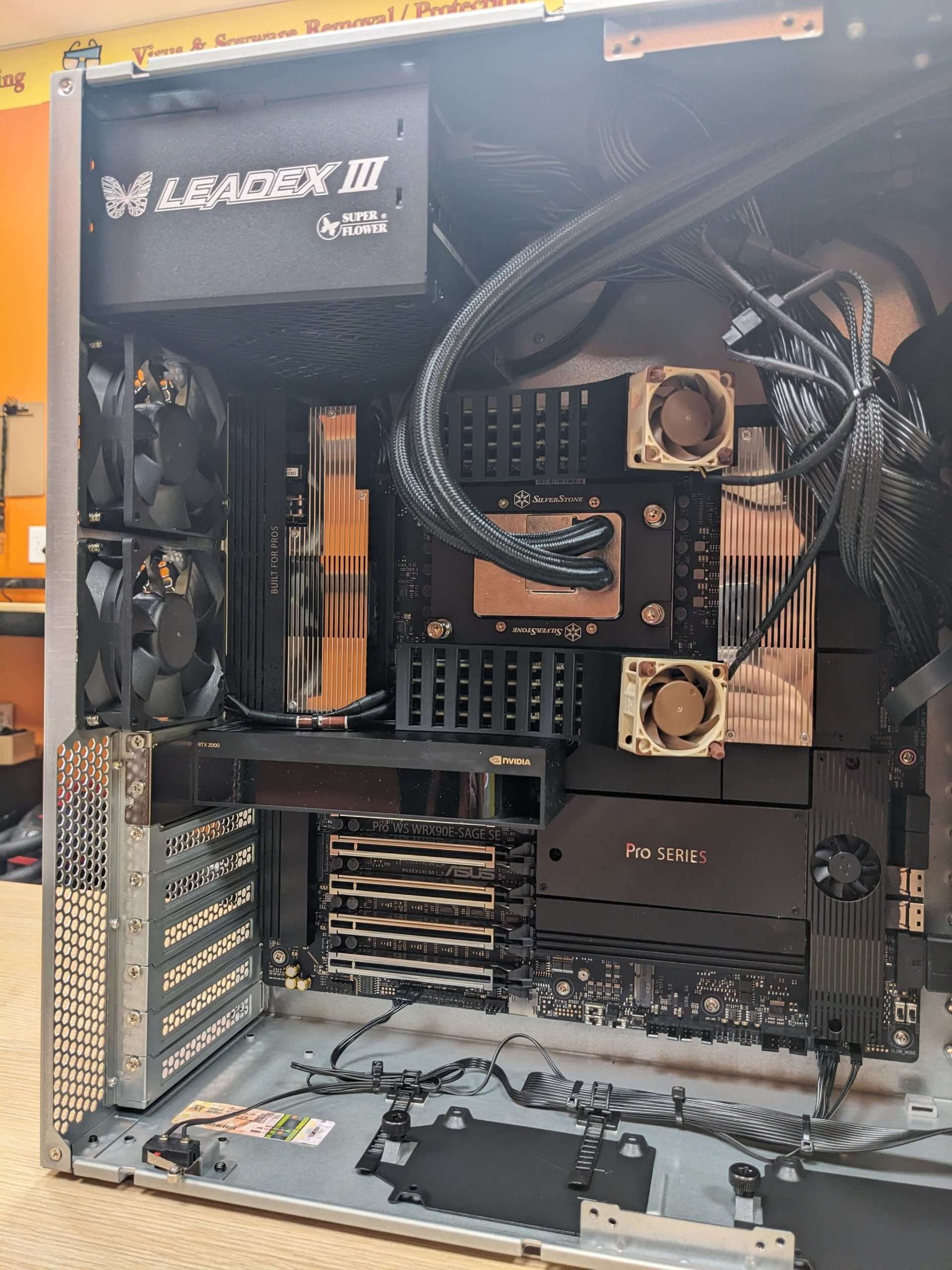

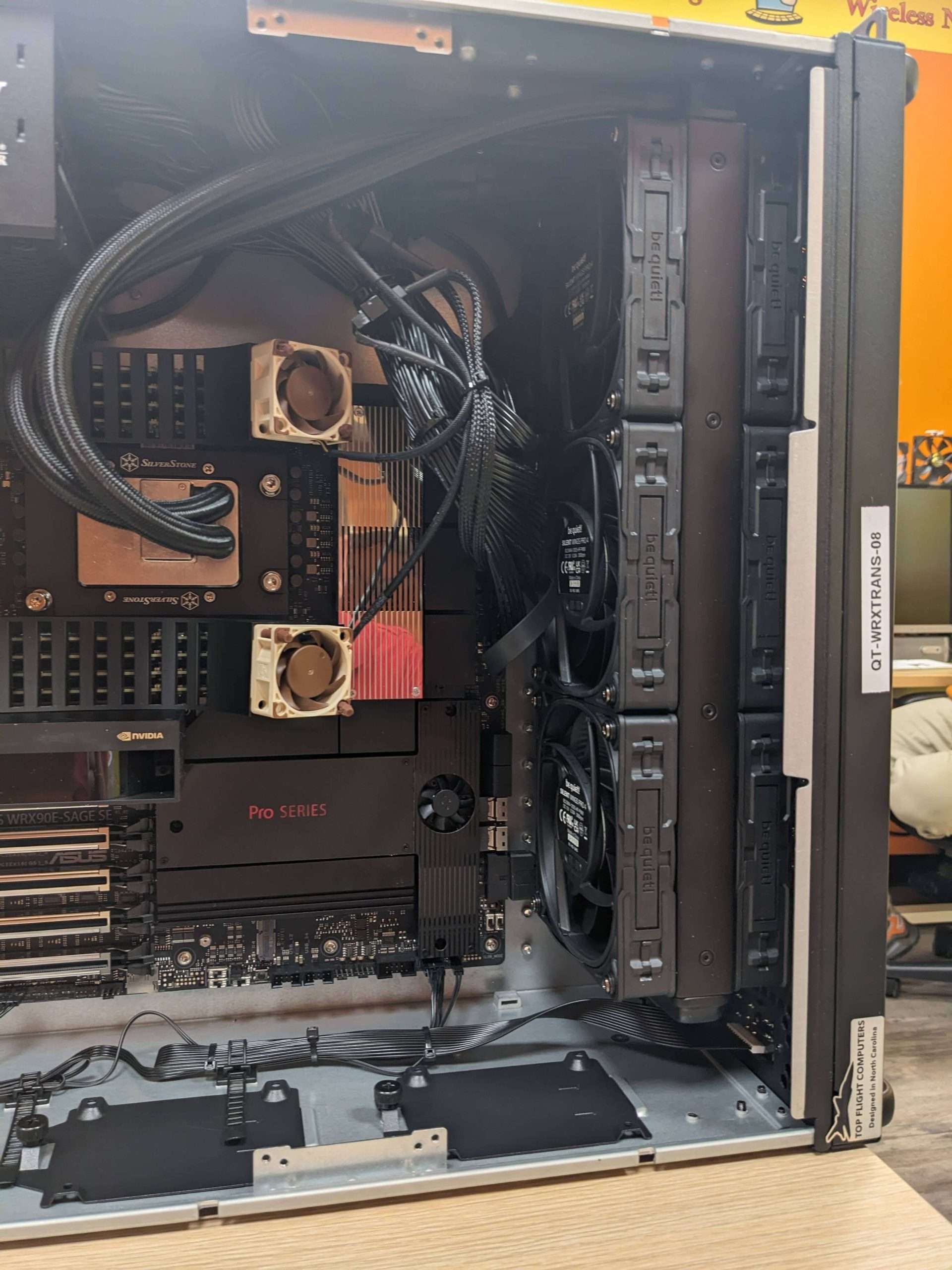

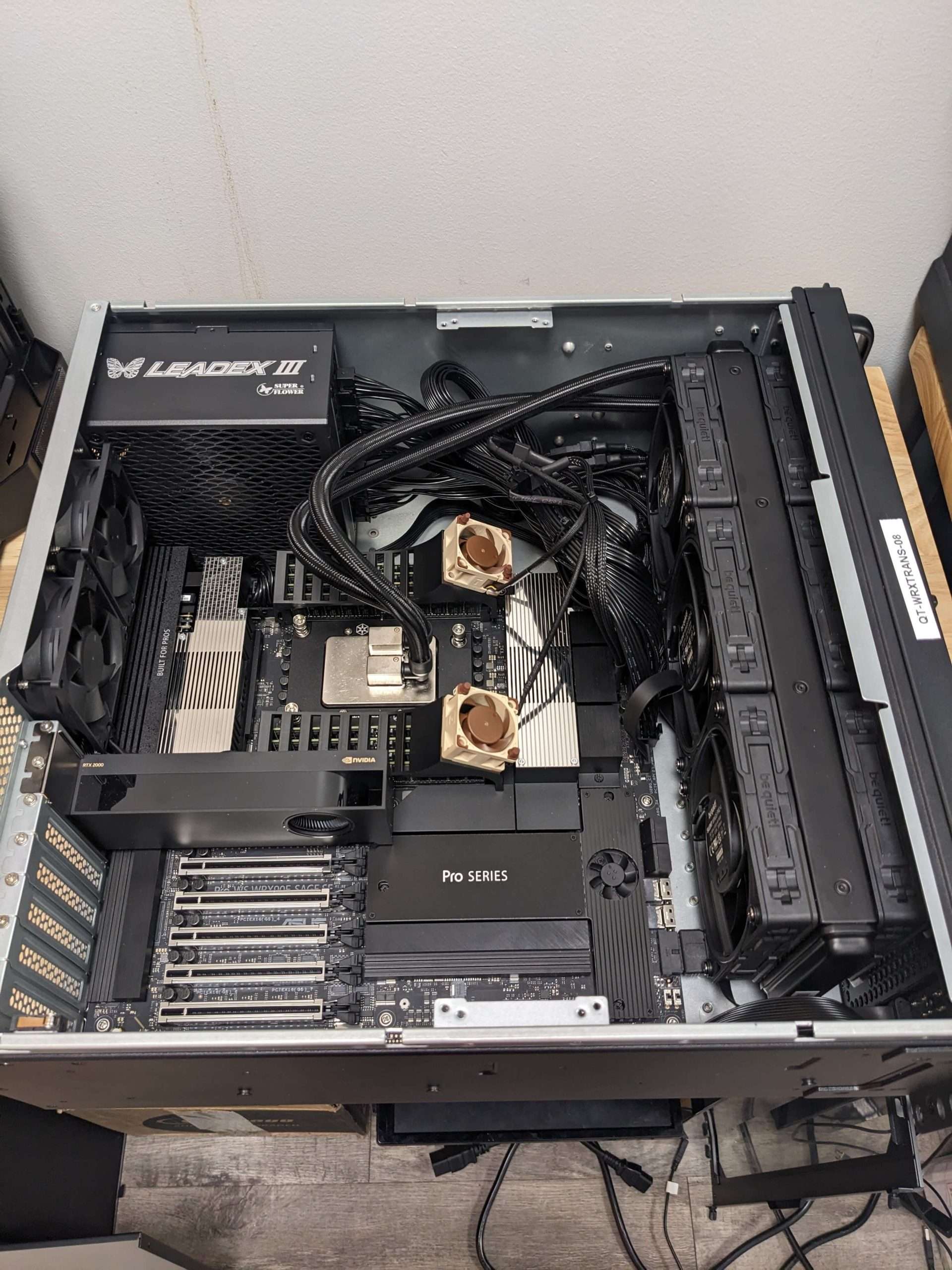

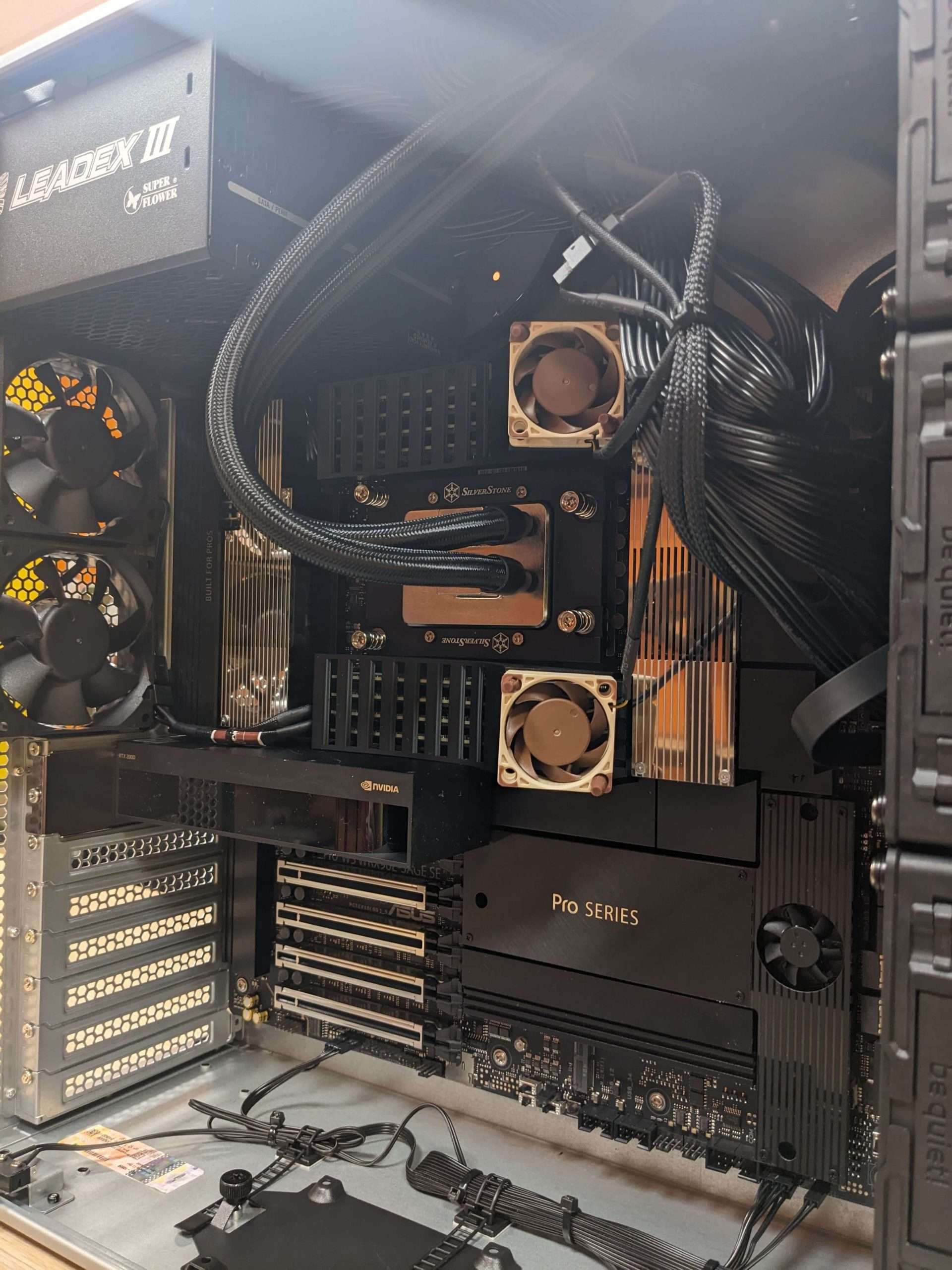

Build Gallery
