Build 372 – SplatCanDu: 3D Splatting Workstation

SplatCanDu is a 3D splatting workstation, designed around a 16-core Ryzen 9 9950X3D processor and an RTX 5080 16GB video card.

Interested In Buying This PC Build?

Buy Now

Navigate here

2025 Build Archive

Support

  • Please note that we are unable to provide extended user-specific software support, you will need to be able to troubleshoot.
  • If you require IT support for your PC and we are unable to help, please contact NerdsToGo Cary at (919)-999-2181 or salescarync@nerdstogo.com
  • We do not work on PCs we didn't build. For computer repair & assembly, please contact Black Sun PC at (980) 866-5497 or jeremy@blacksunpc.com
3D Splatting Workstation

Description

SplatCanDu is a 3D splatting workstation, designed around a 16-core Ryzen 9 9950X3D processor and an RTX 5080 16GB video card.

General System Design

This build is designed around a 16-core Ryzen 9 9950X3D processor and an RTX 5080 16GB video card.

Software Workload/Customer Need

This customer needed a new workstation to handle their growing professional workload.

This system is designed for XGRIDS Lixel Studio, LCC Studio, ArcGIS Pro, Verisk Xactimate, SuperSplat, SketchUp, and Capture One.

This build was influenced by Remus and Ghost Wolf.

System Spec

Processor (CPU): AMD Ryzen 9 9950X3D

CPU Cooler: be quiet! Silent Loop 3 360

Motherboard: Asus TUF GAMING B850M-PLUS WIFI

Memory: GSkill Flare X5 2x64GB DDR​5-6000

OS Storage (NVME): Kingston FURY Renegade G5 2TB

Main Storage (NVME): Western Digital Black SN850X 4TB

Video Card (GPU): PNY GeForce RTX 5080 16GB Triple Fan OC

Power Supply (PSU): Corsair SF1000 2024

Case: Asus Prime AP201 Black Mesh

Fans: 5x be quiet! Silent Wings Pro 4 120 Black, 2x Noctua NFA12x15 PWM Black

OS: Windows 11 Pro

Facebook Build Gallery | YouTube Video Archive

Design Rationale

  • The Ryzen 9 9950X3D was recommended by the software OEM and gives the customer a great amount of single-core performance for editing and modeling, and multicore performance for heavily-threaded tasks. The lower power draw and heat output (vs Core Ultra) also helps this CPU in a space-constrained build.
  • To ensure the CPU runs at full speed, liquid cooling with a 360mm liquid cooler is recommended.
  • The customer wanted a stable motherboard with a good amount of desktop functionality.
  • The customer agreed with our recommendation for memory.
  • The customer ended up opting for a 2TB Gen5 NVME for OS+programs and 4TB Gen4 NVME for main storage. While they most likely don’t need this much initially, they didn’t want to run into storage issues too fast.
  • The customer agreed with our recommendation on the video card.
  • We recommended an 1000W power supply based on the overall build.
  • We recommended a smaller case that still allows for a microATX board.

Customer Review

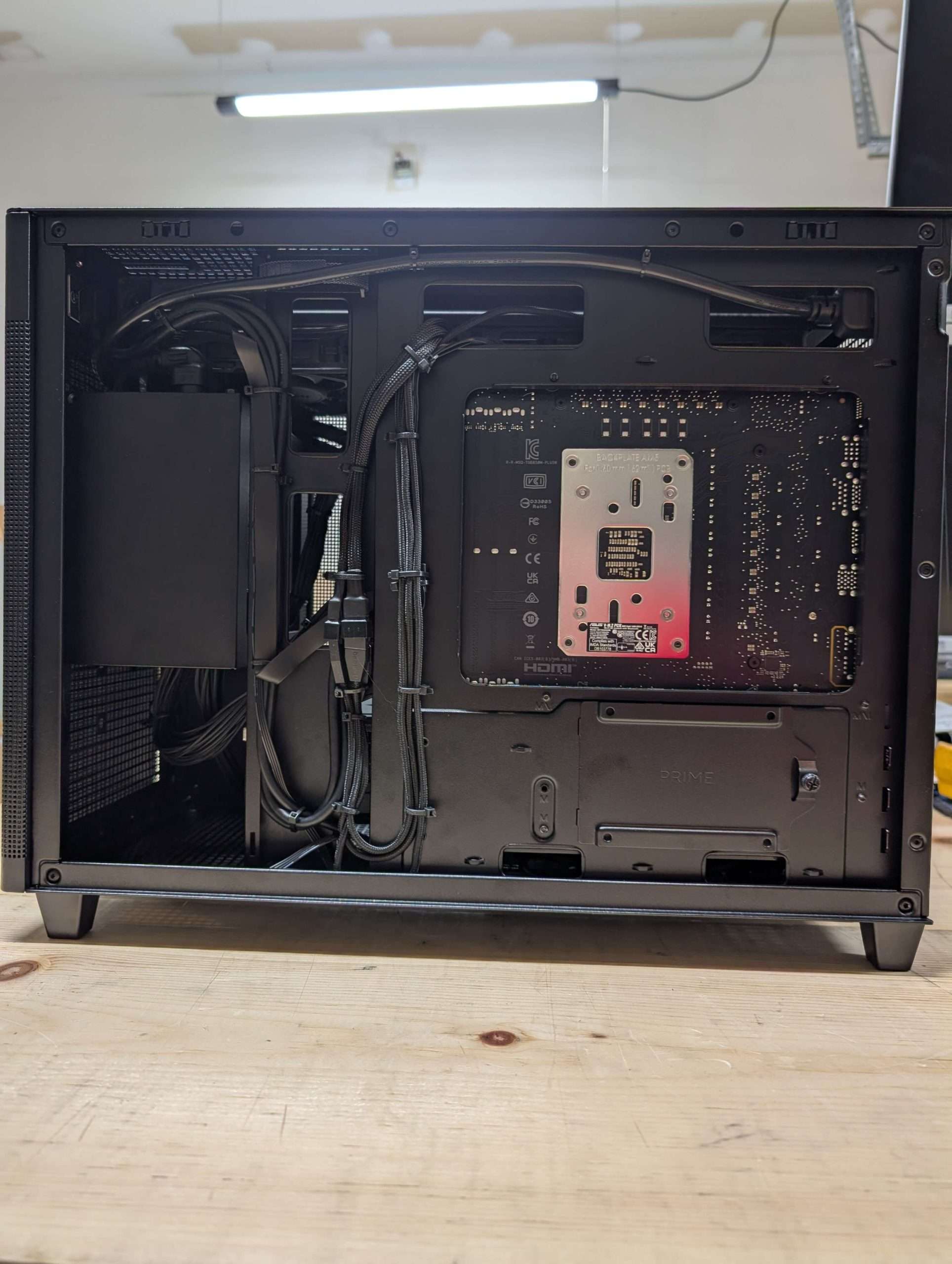

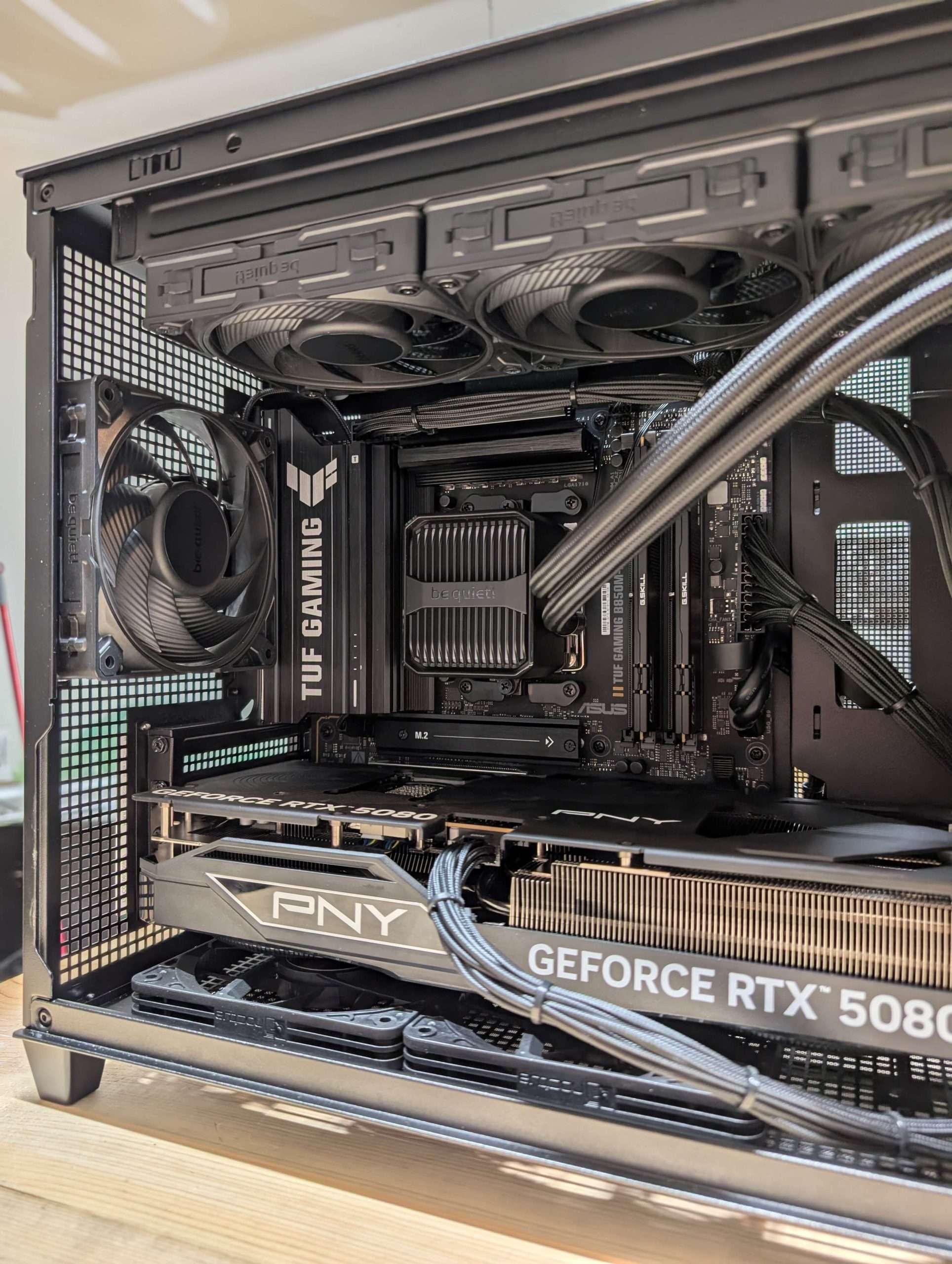

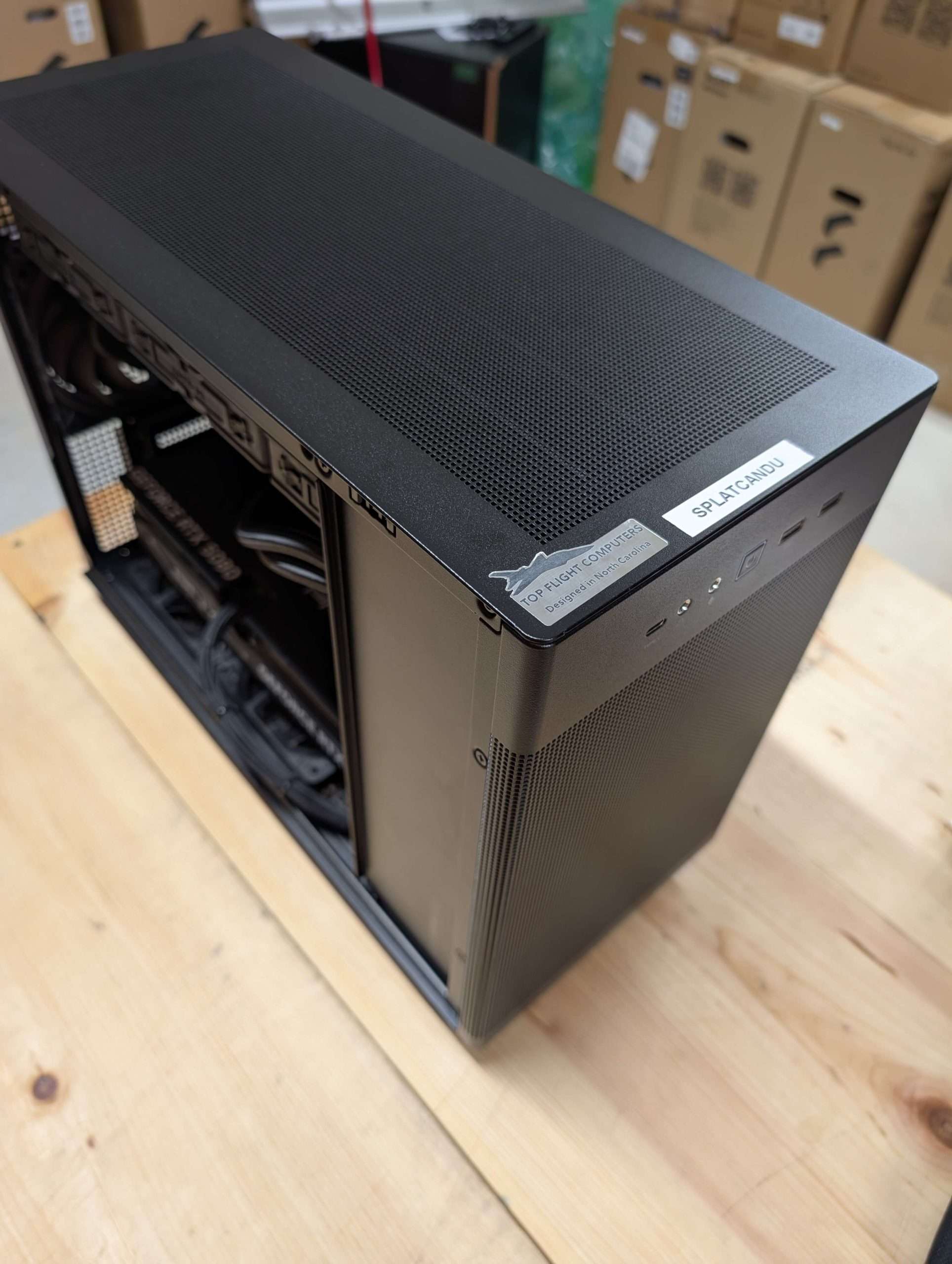

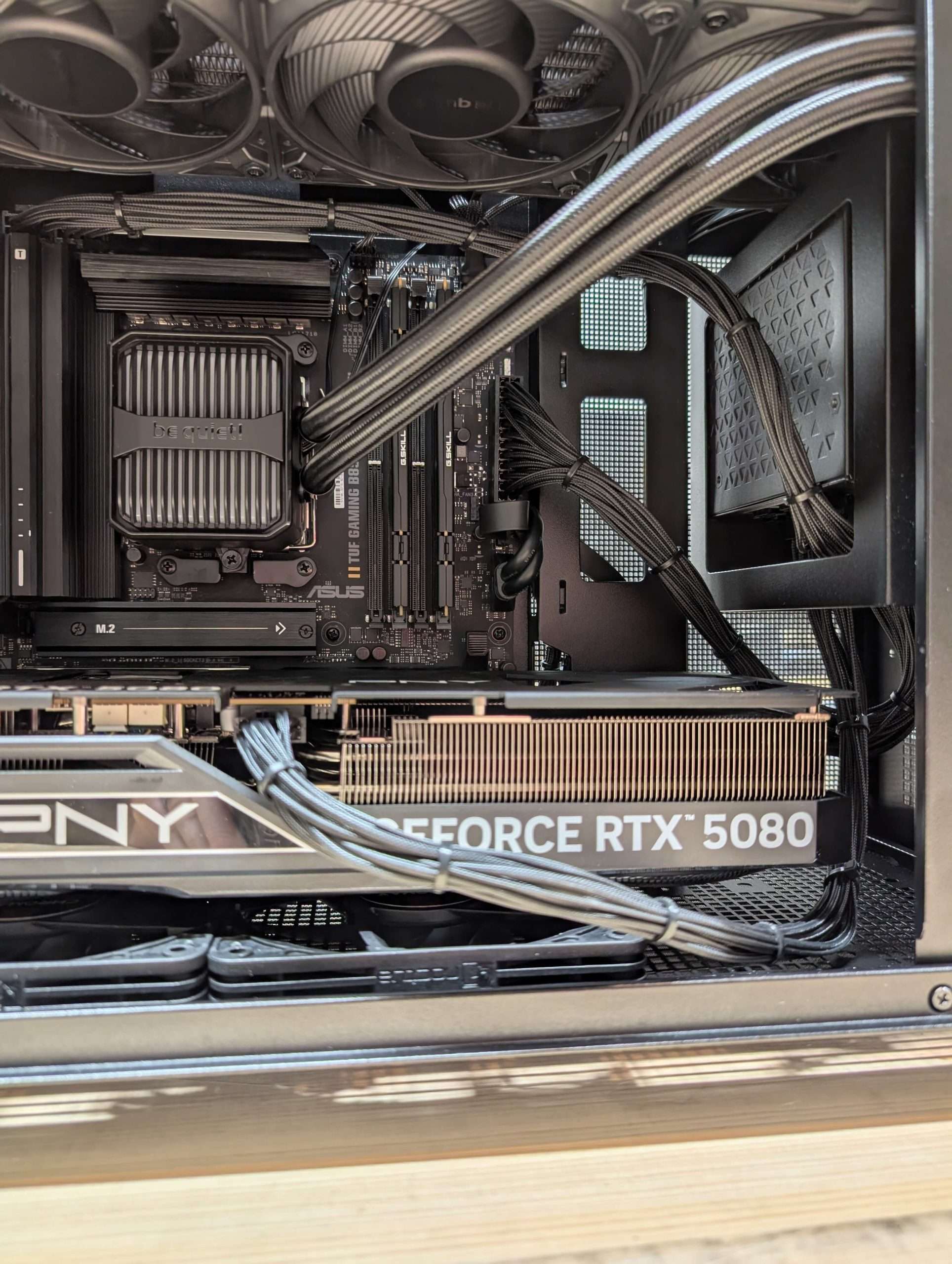

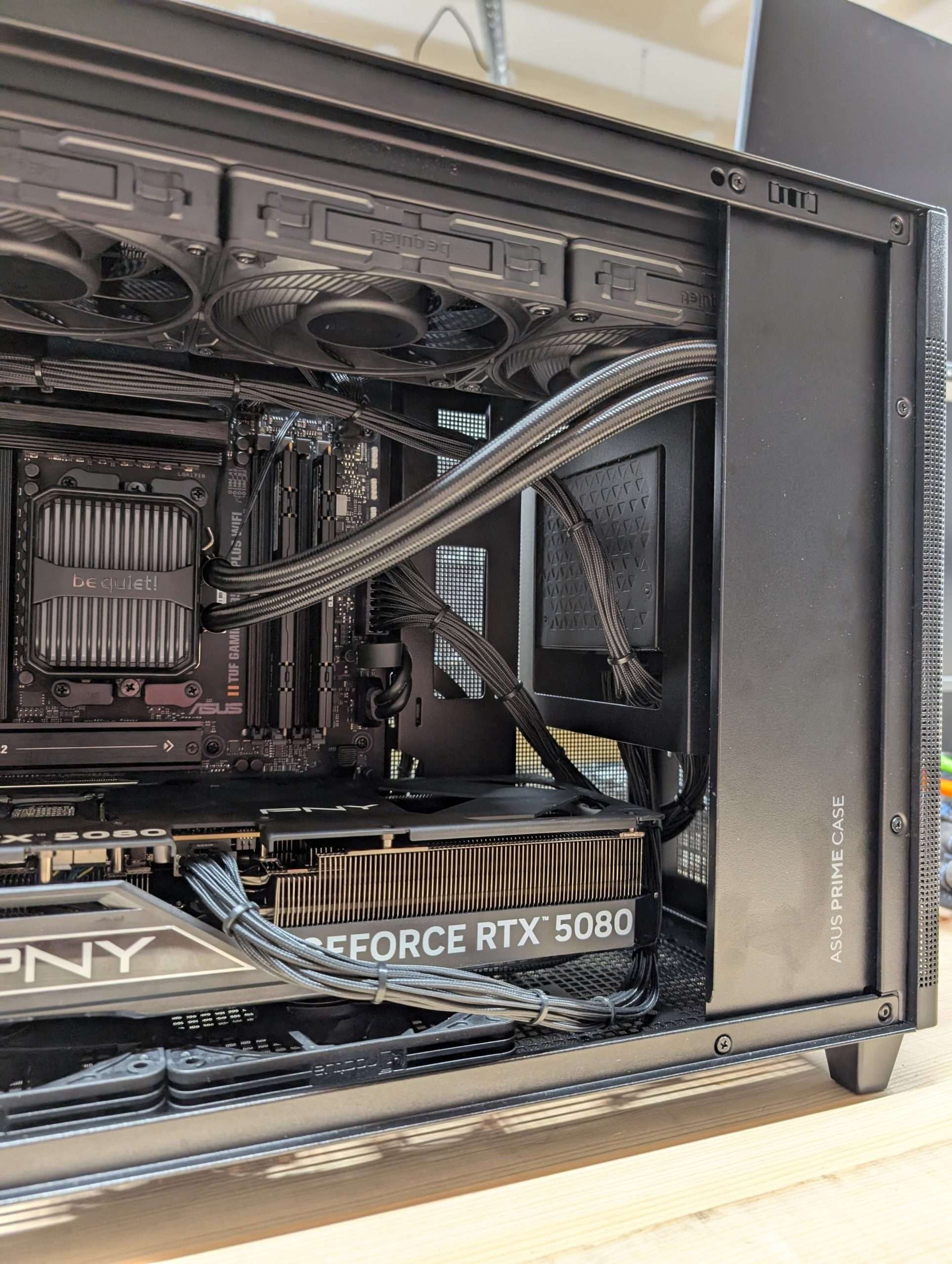

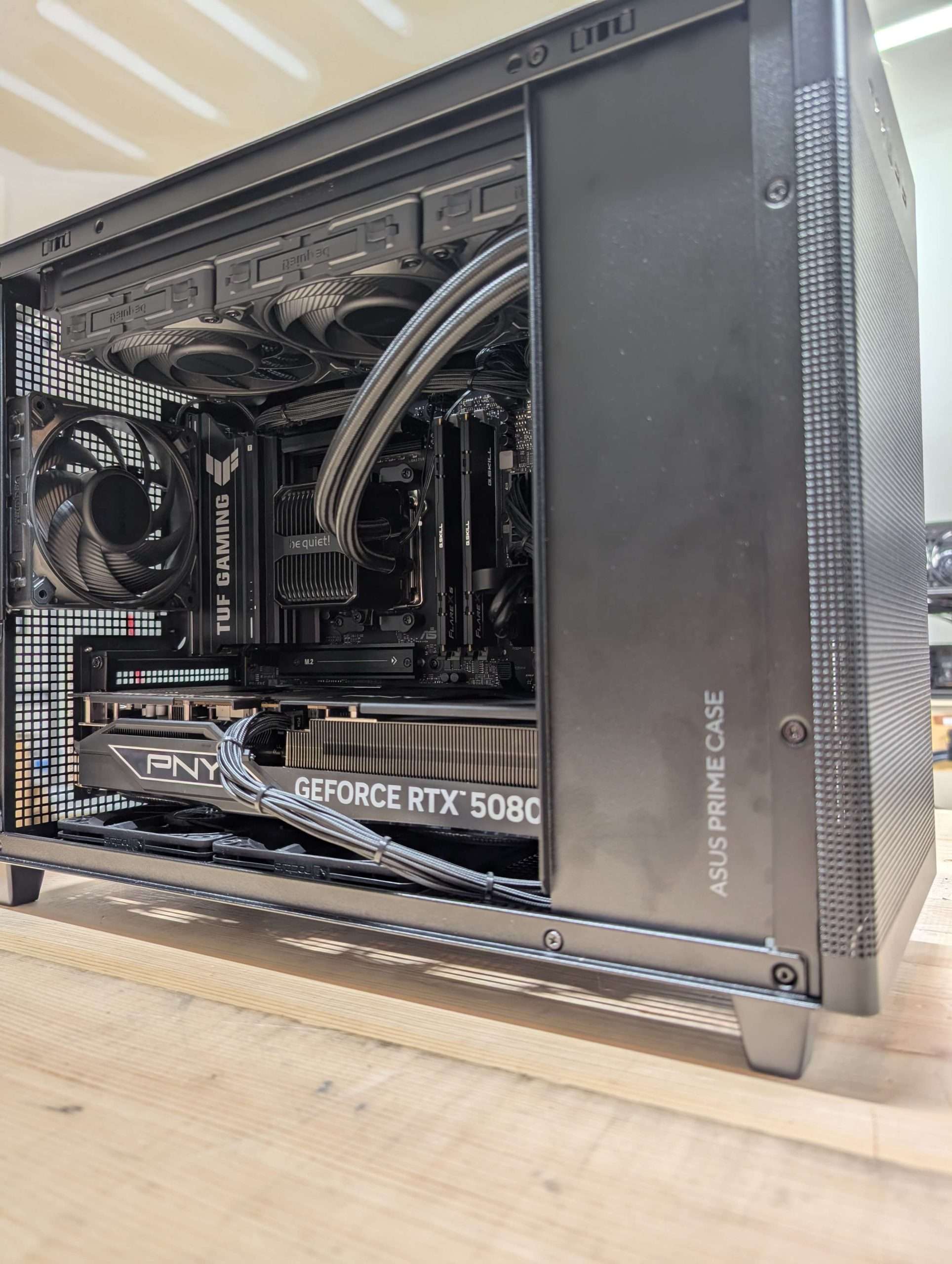

Build Gallery
