CAD Workstation

Description

The Money Maker is a CAD workstation, designed around a 24-core i9-13900K processor and an RTX 4080 Super 16GB video card.

General System Design

This build is designed around a 24-core i9-13900K processor and an RTX 4080 Super 16GB video card.

Software Workload/Customer Need

This customer needed a powerful new workstation to handle their growing professional workload that would last a long time.

This build is designed for Fusion 360, LightBurn, Bambulab, and 4K gaming.

This customer previously worked with us on Rage Inducer, and this build was influenced by our i9 DaVinci Resolve Workstation.

System Spec

Processor (CPU): Intel Core i9-13900K

CPU Cooler: Phanteks GLACIER ONE 360D30

Motherboard: Gigabyte Z790 AORUS ELITE AX

Memory: Kingston F​ury Renegade 2x48GB ​DDR5-6000

OS Storage (NVME): Kingston Fury Renegade 1TB

Main Storage (NVME): Kingston Fury Renegade 2TB

Video Card (GPU): PNY GeForce RTX 4080 Super 16GB VERTO OC

Power Supply (PSU): be quiet! Straight Power 12 1200W

Case: Corsair 5000D Airflow Black

Fans: 6x Phanteks PH-F120T30

OS: Windows 11 Pro

Facebook Build Gallery | YouTube Video Archive

Design Rationale

  • The i9-13900K gave the customer a great amount of single-core performance for general use, and multicore performance for heavily-threaded tasks.
  • To ensure the CPU runs at full speed, liquid cooling with a 360mm cooler is recommended.
  • The customer wanted a stable motherboard with a good amount of desktop functionality.
  • The customer saw the default memory setup on our i9 DaVinci Resolve Workstation and elected to have that on his new long-term workstation.
  • The customer was fine with our default storage setup.
  • The RTX 4080 Super worked best for the customers immediate needs, the large case and upgraded PSU allowed for easy GPU upgrades in the future.
  • While the overall design of the build meant that a 1000W power supply was needed, we recommended the 1200W for an easier GPU upgrade path (small cost add).
  • We used our alternate mid-tower case to fit the build.
  • We used our highest-end fans to ensure proper airflow and static pressure.

Customer Review

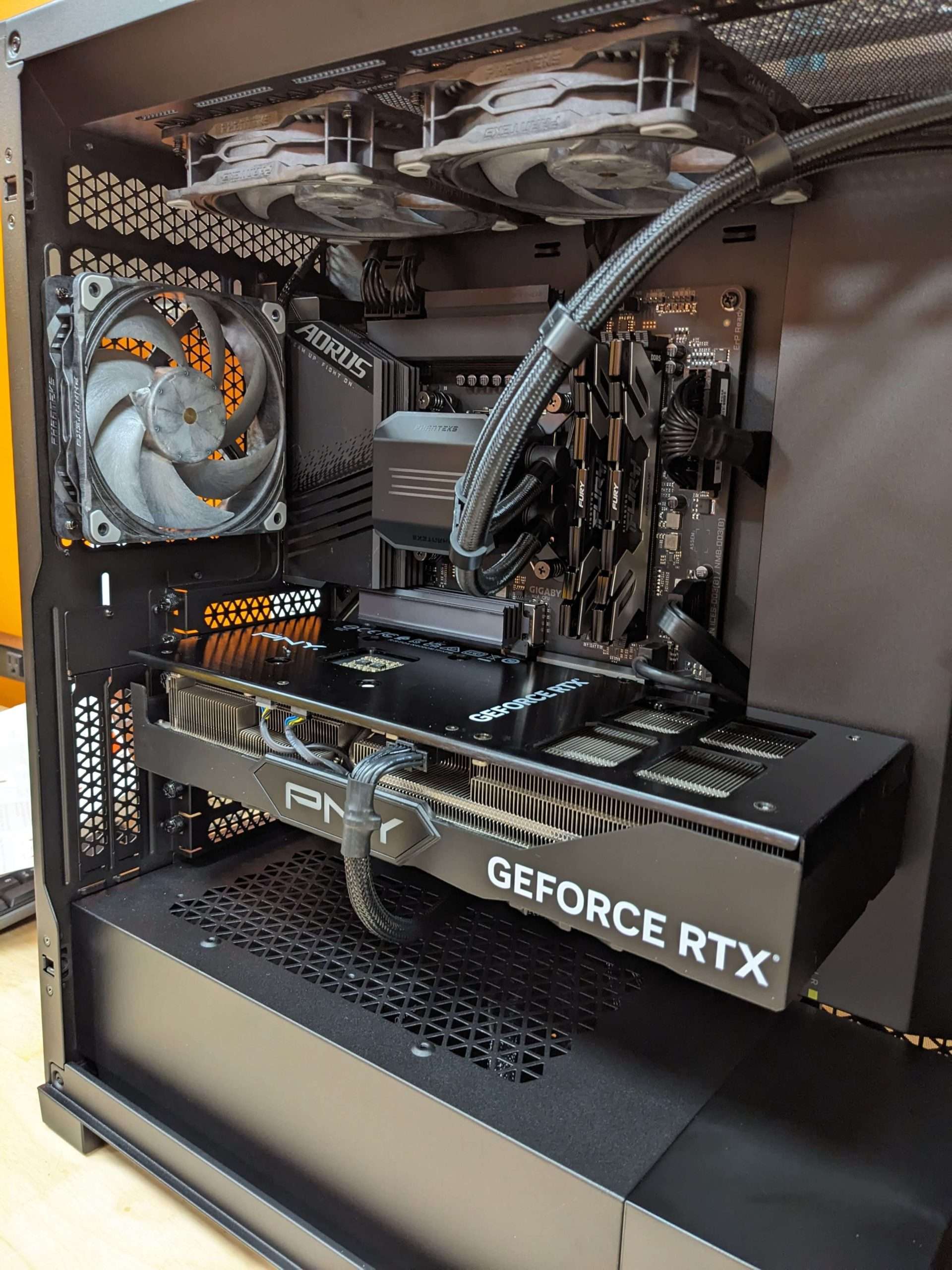

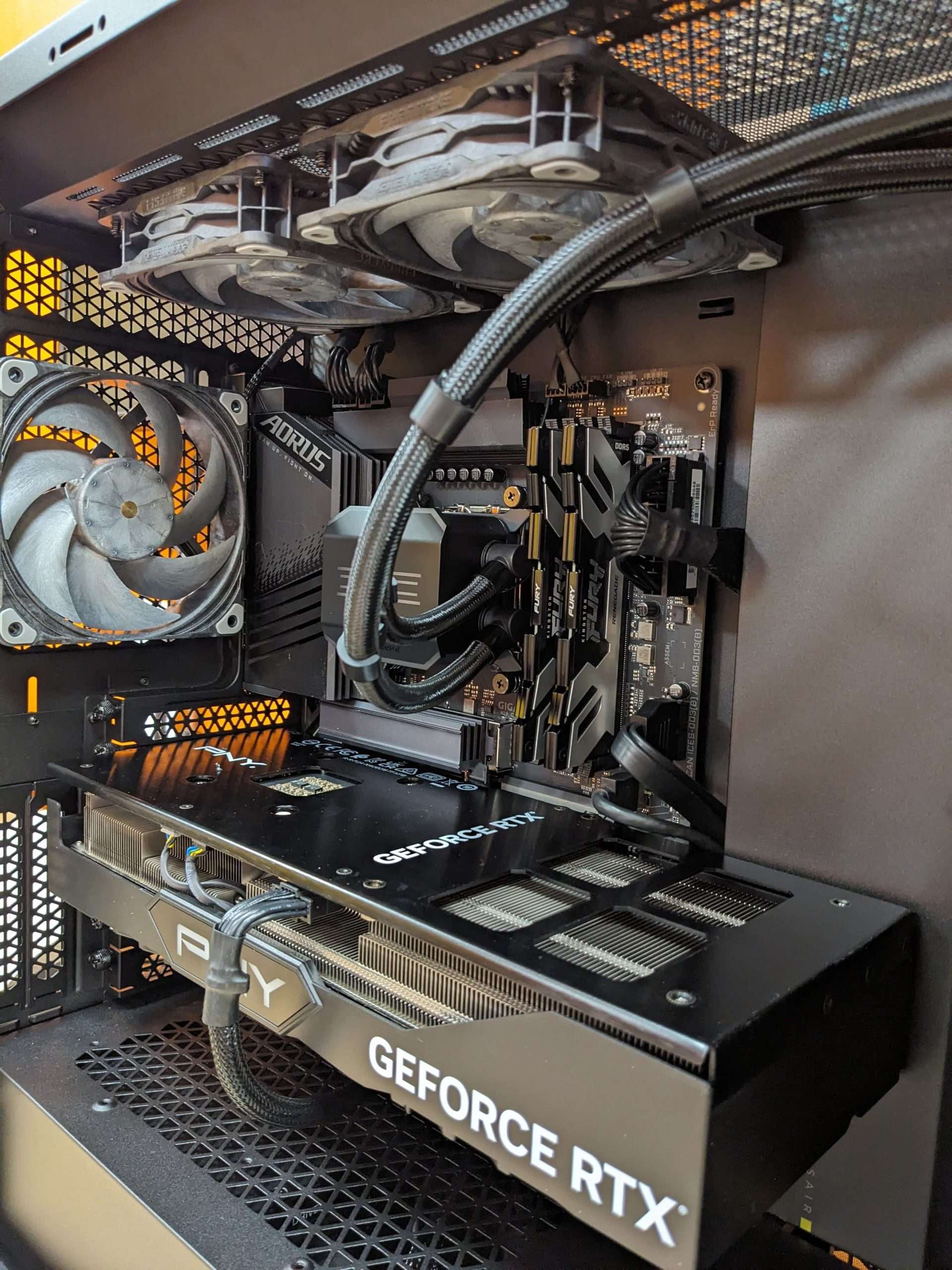

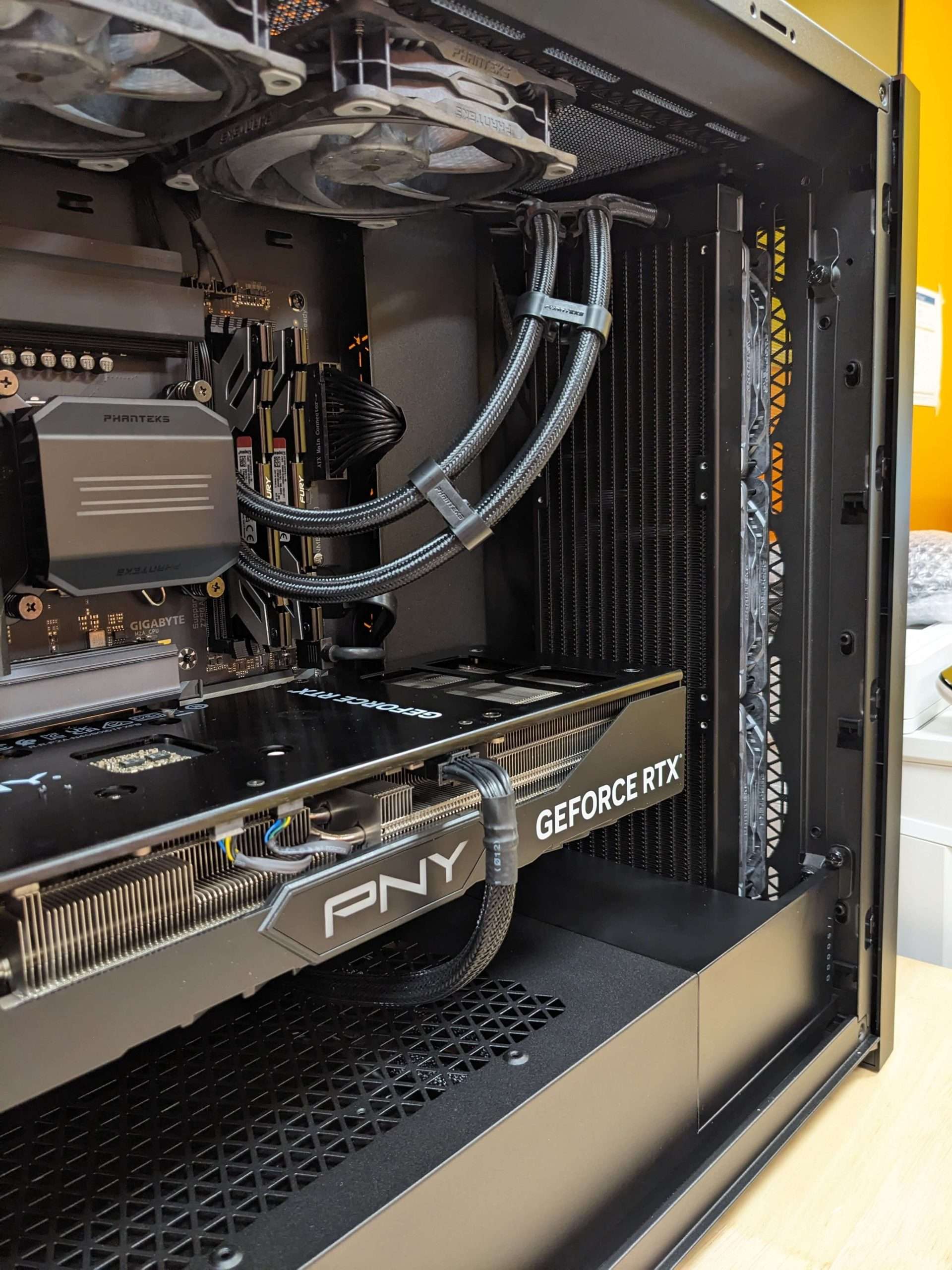

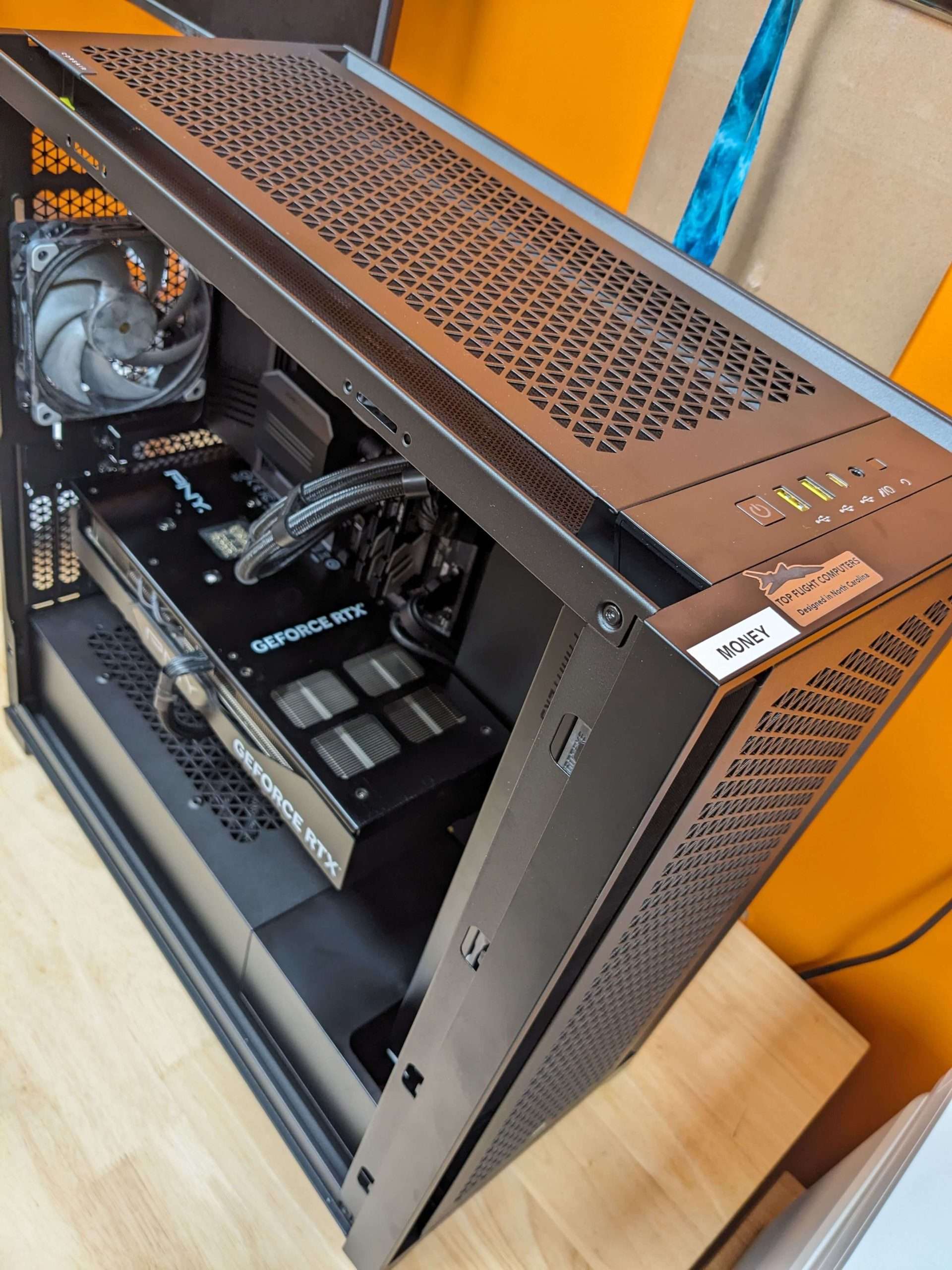

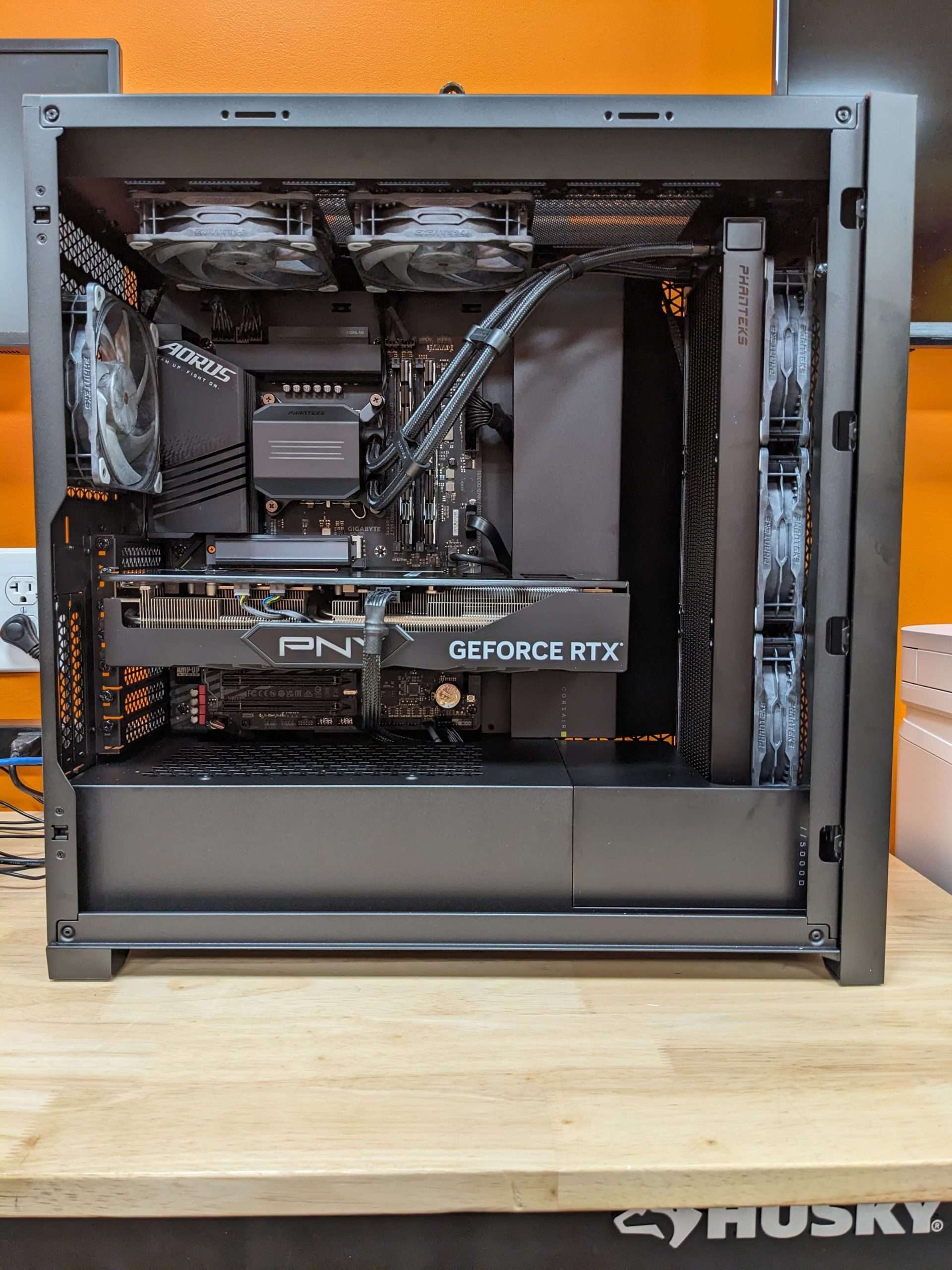

Build Gallery
